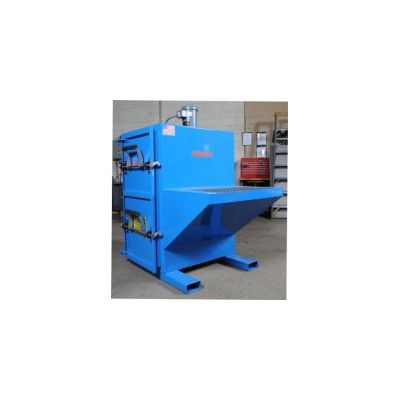

SideKick - Model PSKB -Portable Cartridge Downdraft Bench

Exceptional work deck face velocities capture contaminants at the source, protecting worker clean air zone and maintaining product integrity.

Two 80/20 cellulose/polyester blend cartridges mounted in a vertical position, using the Uni-Wash Cam-Loc positive seal method, form the focus of the filtration process.

Fiberglass work decks are standard on both single station and dual station designs. Customer specific work deck configurations are readily available.

Rugged, 12 gauge, cold rolled, sheet steel, solid welded housing construction makes for an industrial piece of equipment that will remain in service for years.

Single door access to the cartridge chamber, compressed air chamber, and fan plenum add to the simple utility of the machine and provide ease of periodic inspection and maintenance.

Each machine is available with a wide variety of optional features including side and ceiling panels, lighting, explosion proof controls, tool screens, and various types of work deck surface materials based on application needs.

• High Performance in a Compact Design, 300 ft/min average capture velocity at the work surface
• Single Cam Locking Door Access for All Internal Components
• Integral Fan Package
• Heavy Sheet Steel Welded Construction
• Integrated Fork Slots
• 1000 and 1440 CFM Capacities
• Compressed Air Reverse Pulse Cartridge Filter Cleaning

• Work Hood/Lighting
• Special Work Deck Materials
• Fan Discharge Sound Trap
• Special Motor/Pulse Controls

• Hand Finishing
• Weighing/Measuring
• Hand Deburring
• Fine Tolerance Grinding
• Jewelry Manufacturing
• Art Studio Sculpture
