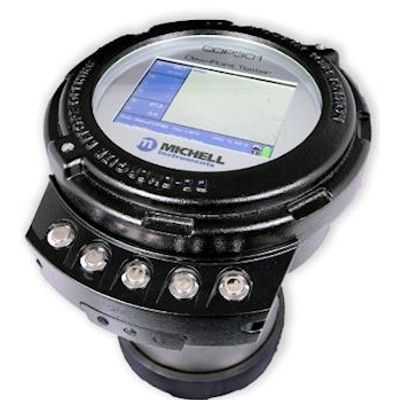

Michell - Model CDP301 -Portable Dew-Point Tester

FromMichell Instruments Ltd - a DwyerOmega Brand

SHARE

Manual hydrocarbon and water dew-point tester for natural gas. CDP301 portable HCDP tester uses the chilled mirror principle for both hydrocarbon and water dew point measurements and is designed to follow the requirements as described in ASTM D1142. Based on the visual manual method of observing the formation of condensate, the CDP301 uses a high-definition visual image to assist users and allows image capture and reliable logging of measurements for later review.

Most popular related searches

dew point monitoring

portable dew point monitoring

gas dew point monitoring

natural gas analyzer

portable dew point

natural gas transmission pipeline

dew point mirror

analyzing hydrocarbons

Fundamental cooled-/chilled-mirror dew-point measurement principle
High-definition colour LC display
Visual identification of both water and hydrocarbon dew point
Automatic mirror cooling rate control according to ISO 6327 and ASTM D1142 test methods for natural-gas dew-point measurements
Self-contained, rechargeable battery powered
Exd certified IECEx ATEX Zone 1 IIB+H2 T3
100 barg operating pressure rating
Greater than 60ËšC measurement depression range (up to 100 barg pressure)
Better than +/-0.5ËšC accuracy of mirror surface measurement

Measuring Technique Chilled mirror
Sensor Cooling Automated cooling ramp rate selectable according to ASTM D1142 or ISO6327 measurement practice
Maximum Range Depression range up to Δ T >65°C
Accuracy ±0.5°C
Resolution 0.1°C, 0.1°F
Sample Flow 0.25...0.5 Nl/min

Suitable Applications

Natural Gas Processing
Transmission Pipeline Checking
Sour Natural Gas
Validation of online analyzers
