The typical operating flow ranges vary from 1 CFM to 9 CFM (30 – 255 LPM). Custom higher flow ranges with exterior mounted flow sensors are available upon request.
- Home
- Companies
- F&J Specialty Products, Inc
- Products
- F&J - Model DF-100 Series - Portable ...

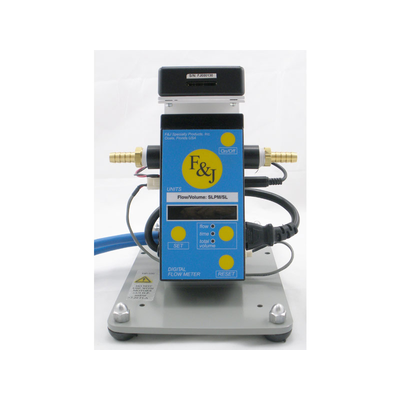

F&J - Model DF-100 Series -Portable Digital Flow Meter Kit
The DF-100 Series portable flowmeter upgrade kits are designed to upgrade existing air sampling systems utilizing motors of 1/3 HP or less. The DF-100 units are connected in-line between the pump inlet and the filter holder. The DF-100 Series upgrade eliminates the need to engage in expensive conversions of equipment or the need to purchase new air sampling systems.
Most popular related searches
digital flow meter
combination filter holder
air sampling system
low volume air sampling
portable flow meter
flow meter
filter holder
air sampling
flow calculator
air sampling flow
- MEASUREMENT ACCURACY:
- Air flow ± 4% of full scale
- Temperature ± 2.0ºF (1.1ºC)
- Barometric Pressure 1% over measured range
- OPERATING TEMPERATURES: 32º - 104ºF (0- 40ºC)
- STORAGE TEMPERATURE: 32º- 122ºF (0º - 50ºC)
- CALIBRATION: Factory calibration 1 per year
- COMMUNICATIONS INTERFACE: RS-232
- INSTALLATION CATEGORY: Pollution Degree 2
- ON-BOARD CALCULATIONS:
- Flow calculation from differential pressure value using best fit curve method
- Flow correction for standard temperature and pressure
- Auto-zero correction utilizing electro-pneumatic method to compensate for offset and drift (automatic, once every minute)
- COMBINATION FILTER HOLDER: Durable plastic combination filter holders for F&J Model B, C or M charcoal cartridges and 47 mm, 2” or 50 mm diameter particulate filter paper are available. All models have quickdisconnect function.
