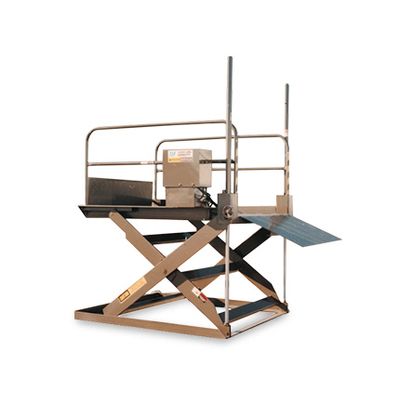

Autoquip - Model PDQ -Portable Dock Lift
Portable, medium capacity PDQ Dock scissor lifts feature an exceptionally low 4 1/2″ profile. PDQ models offer a 60″ x 84″ platform size with capacities from 4,000 lbs. to 6,000 lbs., and 55 1/2″ of vertical travel. The PDQ is well suited for pass-through dock applications of pallet jacks and hand dollies and is commonly found in the automotive, retail, and grocery industries. Three open platform sides are available, making the PDQ a flexible choice for common loading and unloading tasks.
Most popular related searches
Durability and Quality
- Joints, the most critical wear points in the lift, feature chrome-plated, 100,000-psi, ultimate-strength pins for premium load strength and long life.
- Solid steel legs and added stiffeners provide overall stability and straight, repeatable roller tracking as the lift raises and lowers.
- Thick steel reinforced platform minimizes deck deflection, maximizes load stability, and extends life of the platform deck.
Maintenance and Warranty
- On-board maintenance devices enable maintenance crews to safely and effectively block open the scissors during inspection and routine maintenance.
- Maintenance-free bearings at pivot points require no lubrication.
- Efficient hydraulic power unit simplifies servicing.
- Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.
- Easy replacement of high strength steel rollers minimizes downtime.
- Autoquip offers a 2-year warranty on all parts as a promise that you’ve purchased the industry’s most reliable lift.
Simplicity
- Simple Up/Down pushbutton operation.
- Throw-over bridge conveniently covers transition gaps.
- Hinged approach ramp simplifies loading/offloading.
- Single-phase quick disconnect streamlines electrical connection.
Safety
- Removable and permanent handrails allow for safe maneuvering of workers.
- Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
- Minimum 3:1 structural factor of safety makes these lifts the most structurally sound in the industry.
- Compliance with recognized standards:
- ANSI MH29.1 – Safety Requirements for Industrial Scissor Lifts
- NFPA 70 – National Electric Code
- ASTM – A36 – Structural Steel Standard
- ANSI Z535 – Safety Labeling Requirements
- AWS D.1 – Welding Standards
- Applicable portions of OSHA 29CFR1910 – General Workplace Safety
