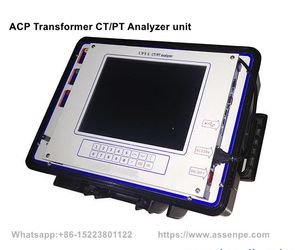

ASSEN - Model ACP-3 -Portable Electric Current Transformer Tester,Transformer CT PT Analyzer
Introduction: ACP current transformer tester is used to measure all kinds of current transformer and voltage transformer. It can calculate the ratio errors and phase angle errors of current transformer and voltage transformer at rated burden and working burden in one time test. The tester can automatically evaluate the test results according to the selected standard to determine whether the transformer is qualified. Tests for current transformer: 1.Excitation curve and parameters test 2.Turns ratio test 3.Ratio and phase error test 4.Polarity mark check 5.Coil resistance measurement 6.Secondary loop burden measurement 7.Error line curve test for protection CT 8.Transient CT parameters test 9.CT nameplate guess 10.Saturation hysteresis loop curve measurement Tests for voltage transformer: 1) Turns ratio test 2) Ratio error and phase angle error test 3) Polarity test 4) Secondary burden test Please contact:ASSEN Email:sales@assenpe.com Whatsapp:8615223801122Most popular related searches

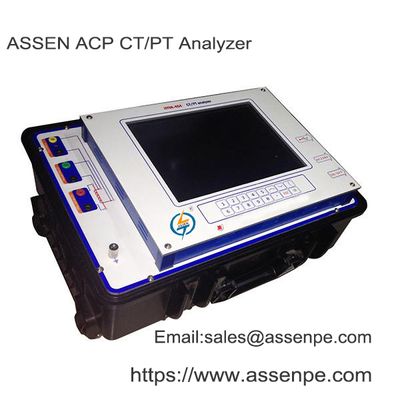

ACP Series CT/PT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard. The device evaluates the current transformer as per the IEC or IEEE standard within seconds with the push of a button.
