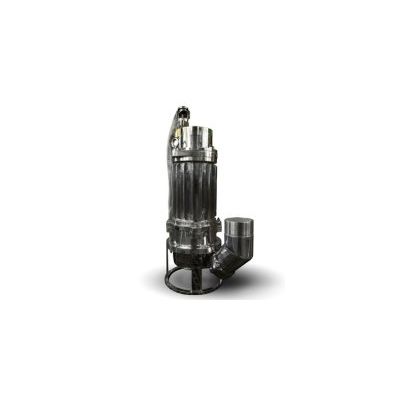

Mody - Model NC SERIES -Portable Electric Submersible Sludge Pump

MOTOR

• 2-pole induction continuous rated motor with squirrel cage rotor.
• Stator insulation class `H` (180ºC)
• Speed : 3400 RPM @ 60 Hz, 2800 RPM @ 50 Hz
• Power Rating : 6/8/10HP @ 60 Hz, 4.5/6/7.5kW @ 50Hz Full Load
• Current FLA: 9.8, 12, 14 Amps @ 460v. 11, 13.8, 16 Amps @ 400v.
• Max. temperature of the pump liquid : 104°F/40°C
• Max. start/stop per hour : 15

POWER SUPPLY

• 3 phase, 50/60 Hz, AC Supply. Available in any voltage frequency
• combination. (208/220/230/380/415/460/575/1000V) Moisture sensor available
• in 200/400v configurations only. Built in Contactor which trips at excessively high
• motor temperatures through bimettalic switches in the winding.

BALL BEARINGS

• The rotor shaft is carried in two single row, deep groove ball bearings.
• The bearings are enclosed with high temperature grease-containing special
• Anti-corrosion additive.

POWER CABLE

• Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor
• flexible cable, 50ft. (15m) length standard. Type SOOW in North America,
• EPR in the Middle East and HO7RN in the EU.

SHAFT SEAL

• Tandem Tungsten Carbide/Tungsten Carbide and Tungsten Carbide/Tungsten
• Carbide Mechanical seals wholly enclosed in a pressure compensated oil chamber.

CORROSION RESISTANT

• Epoxy coated Extruded Aluminum Stator Casing
• Nitrile Rubber– Lined Wear plate.
• Shaft: 431 Stainless Steel
• Hardware: 304 Stainless Steel
• Impeller: Nitride Hardened 410SS to 56HRC is Standard.
• Volute: 304 Stainless Steel
• pH Range 5 - 8

SUBMERGENCE

• Submergence below liquid surface min 8” (127mm) max. 50’ (15m).

WEIGHTS (Approx. without cable)

• NC 06: 145 lbs. (66Kg)
• NC 08: 163 lbs. (74Kg)
• NC 10: 170 lbs. (77Kg)
