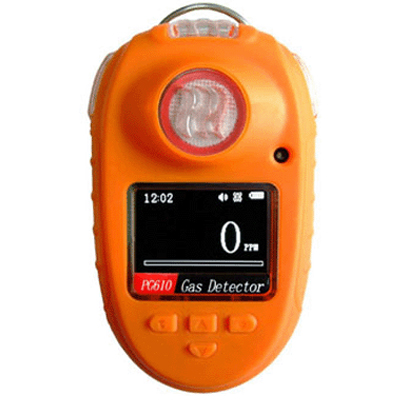

Inte - Model PG610 -Portable Gas Detector
PG610 series portable gas detector: it can detect one kind of gas (showed in form). It is intrinsically safe instrument that can continuously detect the concentration of combustible gas and toxic gas. PG610 Gas detector is designed for safety technical personnel and equipment maintenance personnel to guarantee the staff`s life safety and to protect production equipment from losses. PG610 Gas detector detects gas concentration in natural diffusion way, and also can use external suction pump to sample gas. This gas detector normally use imported electrochemical sensor (use catalytic combustion sensor for combustible gas detector). It has excellent sensitivity and good repeatability. PG610 Gas detector is easy to take,waterproof, dustproof and explosion-proof.
- Big OLED display, Highlighted, High-definition
- Automatically save the detecting data for 5000 records
- Data progress bar display mode, can learn about the state of concentration
- Low power consumption , save energy, save electricity
- Real-time clock display function
- The key operation needs to input password to prevent wrong operation.
- Automatic calibration function, reduce the measuring error.
- Recover key data, avoid the loss of data
- Battery power real-time display, under-voltage hint, low pressure automatic shutdown
- Standard MINI-USB charging interface; charger is compatible with computer and celphone`s
- Charging protection function; when battery is full, charger wilshut down automatically.
- Computer connection function; to realize data download, parameter setting (optional)
- Alarm type: audible and visuaalarm, vibrating alarm
- STEand TWA alarm function for toxic gases
- Power on self-test function
- Adjustable high and low alarm level
- instrument box, gas detector, specifications, certificate of approval, warranty card, charger, gas hood
- widely used in Metallurgy, petrochemical industry, coal mine, papermaking, fire-fighting, municipal affairs, pharmacy, power plant, chemical industry, mine, tunnel, underground pipeline, etc.
- Detecting Gascombustible gas, toxic gas, oxygen
- Measuring Rangesee the chart
- Sampling Methoddiffused or pump suction (external electric sampling pump)
- Deviation≤± 3% F.S
- Respond TimeT90 < 30 s
- Working Temperaturetoxic gas: - 20 ? ~ + 50 ?
- Combustible gas: - 40 ? ~ + 70 ?
- Working Humidity< 95% R.H. no condensation
- Sensor lifesee the chart
- Display ModeOLED screen shows density, time, battery power, Alarm state,
- percentage progress bar
- Data Storage5000 records
- Upload Dataconnected to computer via data line(optional)
- Alarm TypeLight: wide-angle light emitting diode
- Sound: 90 Db humming;
- Vibration: oscillator speed of 1300 r/min
- Working VoltageDC3.6 V lithium ion battery, 1000 mAh
- Charging Time4 h ~ 6 h
- Working Timecombustible gas ? 8 h (continuous); Toxic gas ? 72 h (continuous)
- Protection ClassIP66
- Weight140 g
- Appearance Size98 mm × 60 mm × 24 mm
