Systronik - Portable Gas Detector

• Fast and reliable detection
• Sensor for a wide range of flammable gases
• Sensor poisoning protection
• Flexible gas probe
• Audible alarm if limit values are exceeded

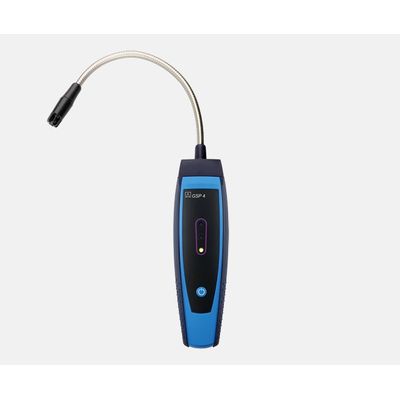

The portable gas detector GSP 4 is used to sniff out gas leaks of flammable gases in gas pipes as well as connection pieces and fittings, gas meters, gas burners and gas tanks.

Thanks to the flexible gas probe, even areas which are difficult to access spaces can be reached easily. The gas detector reacts to all flammable gases such as methane, propane, butane (base calibration: methane) and has sensor poisoning protection integrated for a long service life.

The intensity of the escaping gas is indicated by the three LEDs. At the same time, the instrument generates an audible signal whose frequency is proportional to the gas concentration. The detector switches off automatically after four minutes.

General data

• Dimensions H x W x D 392 x 45 x 30 mm (incl. probe)
• Weight     approx. 158 g
• Material housing Plastic (PA)
• Measuring range 0 to 2,000 ppm methane CH4
• Accuracy ±500 ppm
• Air pressure range 750 to 1,100 hPa
• Humidity range 20 to 80 % rh
• Detection sensitivity > 50 ppm
• Indication 3 LEDs
• Operating temperature 0 to 40 °C
• Storage temperature -20 to 50 °C
• Connection flexible probe
• Power supply 2x AAA batteries (micro)
• Operating time up to 10 hours
• Ingress protection rating IP42 (EN 60529)
