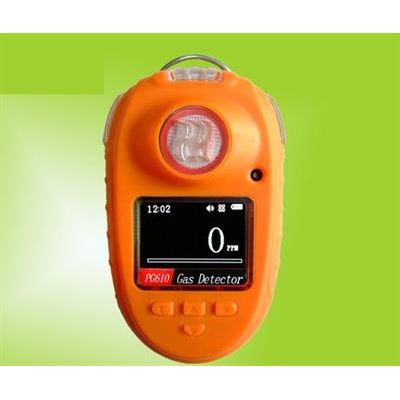

Inte - Model H2 -Portable Hydrogen Gas Detector

There are two models for HYDROGEN GAS DERTECTOR:

• PG610-EX    detect HYDROGEN     RANGE:0-100%LEL
• PG610-H2    detect HYDROGEN     RANGE:0-1000PPM

• Big OLED display, Highlighted, High-definition
• Automatically save the detecting data for 5000 records
• Data progress bar display mode, can learn about the state of concentration
• Low power consumption , save energy, save electricity
• Real-time clock display function
• The key operation needs to input password to prevent wrong operation.
• Automatic calibration function, reduce the measuring error.
• Recover key data, avoid the loss of data
• Battery power real-time display, under-voltage hint, low pressure automatic shutdown
• Standard MINI-USB charging interface; charger is compatible with computer and celphone`s
• Charging protection function; when battery is full, charger wilshut down automatically.
• Computer connection function; to realize data download, parameter setting (optional)
• Alarm type: audible and visuaalarm, vibrating alarm
• STEand TWA alarm function for toxic gases
• Power on self-test function
• Adjustable high and low alarm level

• instrument box, gas detector, specifications, certificate of approval, warranty card, charger, gas hood

• widely used in Metallurgy, petrochemical industry, coal mine, papermaking, fire-fighting, municipal affairs, pharmacy, power plant, chemical industry, mine, tunnel, underground pipeline, etc.

• Detecting Gas Hydrogen
• Measuring Range see the chart
• Sampling Method diffused or pump suction (external electric sampling pump)
• Deviation ≤± 3% F.S
• Respond Time T90 < 30 s
• Working Temperature toxic gas: - 20 ? ~ + 50 ?     (PG610-H2)
• Combustible gas: - 40 ? ~ + 70 ?   (PG610-EX)
• Working Humidity < 95% R.H. no condensation
• Sensor life see the chart
• Display Mode OLED screen shows density, time, battery power, Alarm state,
• percentage progress bar
• Data Storage 5000 records
• Upload Data connected to computer via data line(optional)
• Alarm Type Light: wide-angle light emitting diode
• Sound: 90 Db humming;
• Vibration: oscillator speed of 1300 r/min
• Working Voltage DC3.6 V lithium ion battery, 1000 mAh
• Charging Time 4 h ~ 6 h
• Working Time combustible gas ? 8 h (continuous); Toxic gas ? 72 h (continuous)
• Protection Class IP66
• Weight 140 g
• Appearance Size 98 mm × 60 mm × 24 mm
