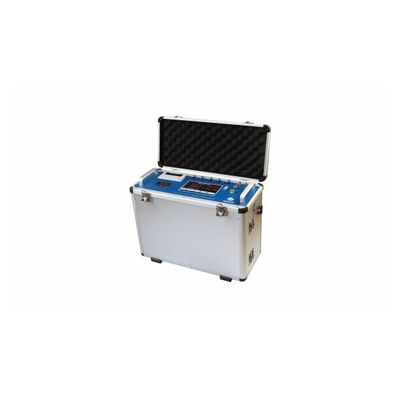

Cubic Instruments - Model Gasboard-3800P -Portable Infrared Flue Gas Analyzer
It is portable type and used to measure concentration of SO2, NO, CO, CO2 and O2 from stack or boiler emission gases, in which SO2, NO, CO and CO2 are measured by micro-flow infrared sensors and O2 by electrochemical sensor, with optional gas temperature, pressure, velocity etc, calculating combustion efficiency, lambda, etc.
Most popular related searches
flue gas analyzer
flue gas
continuous emissions monitoring system
gas analyzer
heated sampling probe
infrared flue gas analyzer
sampling probe
SO2 monitoring
combustion performance
heated sampling
- Integrate heated sampling probe and sampling hose.
- Built-in heated filter, prevent sampling loss.
- Max working temperature 200?.
- Smart design, safe and reliable.
- Filter element: 2 um
- Length: 3m
- Power supply: 220V
- Power consumption: 330W
- environmental temperature: -40?—140?
- Gas analyzer features:
- Innovative micro-flow NDIR technology.
- Measure SO2, NO,CO,CO2,O2 and optional temperature, pressure and flow.
- Less interference of H2O for SO2 and NO measurement.
- Built-in zero pump and auto zero calibration with fresh air.
- Optional printer.
- Calculation of Lambda and combustion efficiency.
- Touch screen.
- USB output.
- Gas conditioning system features:
- Efficient peltier dehumidifiers for humidity measurement of low concentrations.
- PID temperature control.
- Needle valve flow control.
- Built-in sampling pump and peristaltic pump.
- Measurement component: SO2 NO CO CO2 O2
- Measurement technology: SO2/NO/COCO2: NDIR O2: ECD
- Measurement range: SO2/NO:(0~2000) ppm; CO:(0~5000)ppm; CO2/O2:(0~25)%
- Accuracy: SO2/NO/CO/CO2:±2%F.S.; O2:±2%F.S.
- Resolution: SO2/NO/CO:1ppm; CO2/O2:0.01%
- Repeatability: ≤2%
- flue gas temperature: (0~800) ?
- flue gas flowrate: (3~40) m/s
- Response time: T90
- flow rate: (0.7~1.2) L/min
- inlet gas pressure: (2~50) kPa
- Output: USB,OR Dot matrix printer
- Power Supply: 100~240VAC,150W
- With self-diagnosis function, can check the sensor status online
- Heated sampling probe with built-in filter element
- Corrosion resistant sampling probe, can customized to 1m, 2m and other different lengths, to suitable for different demands
- Imported heating tube to keep the temperature with 180?
- Equipped with pretreatment device, built-in sampling pump, gas cooler and peristaltic pump
- Can expand the gas temperature, pressure, flow rate, environmental temperature, environmental pressure etc
Combustion and emission control research or certification of Continuous Emission Monitoring System (CEMS), combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.
