Spectrex - Model PC-2300 -Portable Laser Particle Counter

• Complete portability. Use it anywhere!
• Easy Do-it-Yourself Calibration (sealed standards provided)
• Compact & Rugged (15 lbs, floats)
• Quickly Counts & Sizes (16 seconds min.)
• Custom Easy-to-Use Software
• Eliminates Sample Cell Flushing
• Built in Magnetic Stirrer

Utilizing the principle of "near angle light scatter", a revolving laser beam passes through the walls of a glass container of a flow-thru cell. When it is directed through a central "sensitive zone" the PC-2300 not only counts the particles in suspension, but tabulates their size as well. The analog signals generated by the light pulses are routed to a computer and digitized.

Spectrex provides three sealed calibration standards with each unit. Each standard contains a precise number of NIST traceable polystyrene spheres of known size in suspension and are sealed with inert Argon gas. These standards have a proven stability of more than 10 years and provide efficient calibration within 10 minutes.

• Field Hydraulogy
• Water Treatment Plants
• University Laboratories
• Pharmaceutical Manufacturers
• Oil Refineries and On-site drilling
• Bottling & Beverage Operations
• Oceanographic Studies
• Hydraulic Fluids and Oil QC
• Liquid Chromatography Solvent QC
• Cooling Tower and Waste Water Filter Efficiency
• Particle Agglomeration Studies
• Silts and Sediment Sizing
• Particle Settling Characteristics
• Corrosive Chemical and Solvent Sizing
• Vial and Ampule Inspection
• De-ionized Water and Acid Testing
• Cell Counting

Developed by Spectrex, the custom interfacing electronics and proprietary software provide an easy means of analyzing and saving data generated by the PC-2300. SuperCount provides instant sizing information and histogram of size distribution in addition to indicating:

• Absolute Counts
• Mean Size
• Mass Distribution
• Percentage Distribution
• Standard Deviation
• Total Suspended Solids

The dilution factor can be automatically computed to give absolute count for liquids as dense as sludge! SuperCount also is loaded with a special bonus program for hydraulic fluids and Phi classifications.

• Opacity Meter - provides an instantaneous measurement of the sample`s opacity to correlate with computer calculations
• Small Vial Attachment - for use with 5ml vials or ampules
• Flow-Thru Cell - Spectrex stocks various sizes of flow-thru cells and can manufacture cells to customer specifications. Cells are also available for testing at high pressure and temperatures.
• Water Filtration System Features
• Removes particles down to 0.25um (microns)
• Equipped with long reach faucet for easy fill
• Kwik-Change™ cartridges are the fastest changeable cartridges on the market (30-second filter changeout process)
• 1/4-turn pivot filter head makes for ease of accessibility and filter change, reduces the amount of tube connections for greater reliability and reduces leak potential
• Cartridges connect to and disconnect from the unit by a simple 1/4-turn
• Space saving design intsalls under sink or in limited space
• Double Seal O-Ring cartridges ensure system integrity
• No storage tank needed
• Requires only normal line pressure to operate
• Dispenses a continuous supply of water
• Requires minimal maintenance and will provide years of clean, safe, great-tasting water .

• Size: 14.5 " x 9.5 " x 6"
• Typical bottle size: 15-60 mm inside diameter
• Bottle Material: transparent, scratch-free glass
• Weight: 15 lb.
• Power: 115v 60Hz AC, 12v car jack or internal battery (battery runtime is 5 hours)
• Detectable Particle Size: from 0.5µm - 100µm

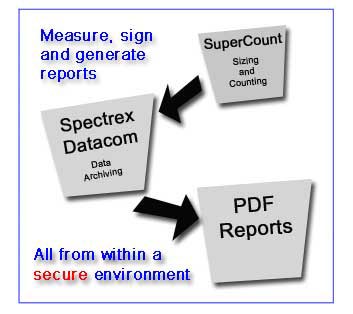

For Pharmaceutical Research and other applications that require Secure Liquid Particle Data Logging…

Spectrex Presents DATACOM a 21 CFR 11 Compliant Product that works in conjunction with the Spectrex Laser Particle Counter. Reduce your total pharmaceutical production costs, while gaining the benefits of 21 CFR Part 11 Compliance, with the Spectrex Datacom complete solution.

Combining the proven technology of the spectrex PC2200 Liquid Particle Counter along with our SuperCount® software ant its` secure shell Datacom, your company will gain the following:

• Identify particle quantity and size from 0.5µm to 100µm diameter
• Operate with both In-situ and flowing liquids
• Easy do-it-yourself calibration with sealed calibration standards
• Compact & portable weighs only 6lbs.
• No cross-contamination of flow lines
• Eliminates sample flushing
• Low Maintenance
• Optional magnetic stirrer eliminates settling by inducing a constant motion of the sample
• Optional small vial attachment - for use with 5ml vials or ampoules, allowing testing for contaminants without opening or detroying the sample
• Data archiving
• Creation of digitally signed electronic reports
• Administrator maintained
• Access rights and authorization
• Instrument calibration audit trail
• Ensure validation
• Digitally signed PDF report generation
• Secure logon, requires strong password
• Unlimited users
• Unauthorized access log
• Instrument calibration logs
• Triple DES password encryption
• Normal and integrated size reports
• Ability to sort size data by user, date,
• sizes or standard.
• Simple to use.
