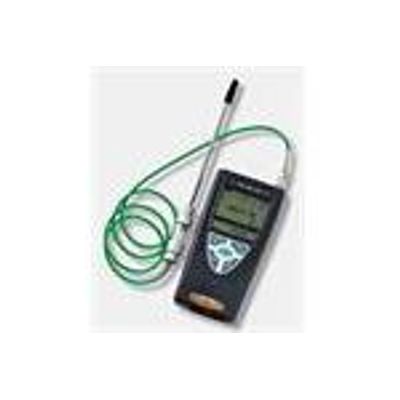

New Cosmos - Model XP-3160 -Portable Multi-Gas Detector (PPM Ranges)

SHARE

The XP-3160 is an economical portable combustible gas detection system for environmental and spot check applications. The XP-3160 features built-in correction factors and can be configured to detect up to 5 flammable gases at once. Select from over 20 gases in your custom configuration. Simple and reliable sensing allows you to use the XP-3160 with confidence. For the quick measurement of high concentration gases in the 0-2,000ppm, 0-5,000ppm and 0-10,000ppm ranges. Commonly used in the Oil & Gas, Power Stations, Petrochemical, Chemical Plants, Boiler Rooms, and Automotive applications.

Most popular related searches
gas detection system
portable gas detection system
combustible gas detection system
portable multi-gas detection
methane detection system
portable combustion gas
combustible gas detection
multi-gas detection system
portable multi-gas
portable gas
  • New Digital Display
    Continuous digital numeric readout and simulated analog scale are displayed simultaneously. Displays gas concentration and the level at a glance.
  • Lightweight Design
    In addition to its “easy-to-hold” designs, the weight is 35% lighter than previous versions
  • Built-In Correction Factors
    Up to 6 types of flammable gas concentrations can be read directly
  • Data-Logging
    Standard 10 hours at 6-second intervals (user-selectable), downloadable to PC with data download software.
  • Auto-Ranging Function
    L-Range and H-Range automatically change according to the gas concentration.
  • Two Power Options
    Up to 20 hours on four AA alkaline cells or up to 5 hours on the optional rechargeable NiCd battery pack.
  • Self-Diagnostics Functions
    Detects low sample flow, sensor disconnection, low battery, and circuit integrity.
  • Built-In Sample Draw Pump
    Standard 1-meter sampling hose with a probe. Optional sampling hoses up to 30 meters are available.
  • Explosion Proof
    UL and Exibd II BT3 certifications.
  • Meets EPA Method-21 specification for Methane (CH4) Detection
  • Weight: 2 lbs
  • Dimensions: 6.4 × 3.2 × 1.4 in
  • Units: Custom Configuration (We will contact you to configure), XP-3160 for Ethylene Oxide (Low Range 0-500ppm, High Range 0-5,000ppm), XP-3160 for Ammonia (0-10,000ppm), XP-3160 for Methane (0-10,000ppm), XP-3160 for Acetic Acid (0-5,000ppm), XP-3160 for Acetone (Low Range 0-500ppm, High Range 0-5,000ppm), XP-3160 for Butyl Acetate (Low Range 0-500ppm, High Range 0-5,000), XP-3160 for Cyclopentane (0-5,000ppm), XP-3160 for Methyl Formate (0-5,000ppm), XP-3160 for Methylal (0-5,000ppm), XP-3160 for Hydrogen (0-2,000ppm), XP-3160 for Hydrogen (0-10,000ppm), XP-3160 for Hydrogen (Low Range 0-500ppm, High Range 0-5,000ppm), XP-3160 Isopropyl Alcohol (0-5,000ppm)
