Metrohm - Model µStat 400 - Portable ...

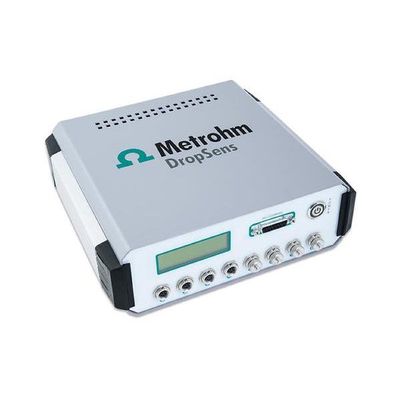

Metrohm - Model µStat 400 -Portable Multi Potentiostat/Galvanostat

SHARE

μStat 4000 is a portable Multi Potentiostat/Galvanostat that can be applied for Voltammetric, Amperometric or Potentiometric measurements, being able to perform up to 4 different independent measurements at the same time and including also a multichannel mode that allows you to work with up to 4 working electrodes sharing auxiliary and reference electrode. Li-ion Battery powered, it can be easily connected to a PC via USB or Bluetooth.

Most popular related searches

potentiostat galvanostat

potentiostat/galvanostat

portable potentiostat

electrochemistry

Operating modes: 4x 1 Channel Potentiostat/Galvanostat; 1x 4 Channel Potentiostat
PC interface: Bluetooth®; USB
Power: Li-ion Battery (6150 mAh); USB; DC charger adaptor compatible (5 V, 15 W)
Potential range in volt: ±4 V
Maximum current in Ampère: ±80 mA
Number of current ranges: 9
Number of current ranges remarks: ±1 nA to ±100 mA
Number of potential ranges (galvanostat): 2
Number of potential ranges remarks (galvanostat): ±100 mV, ±1 V
Multichannel instrument: YES
Maximum number of channels: 4
Maximum number of WE sharing AUX and REF: 4
Potential accuracy: ±0.2 %
Current accuracy: ≤0.5 % of current range at 100 nA to 1 mA; ≤1 % of current range at 10 mA to 100 mA
Potential resolution: 1 mV
Current resolution: 0.1 % of current output range
Measured potential resolution: 0.012 % of potential range
Measured current resolution: 0.025 % of current range (1 pA on lowest current range)
External inputs/outputs: 5 Digital Inp 1, PIO 2, PIO 3, PIO 4, PIO 5]; 3 Analog Inputs multiplexing PIO 1, PIO 2, PIut/Output pins [PIOO 3; 2 Analog Outputs (configurable I-out or E-out)
Dimensions: 205 x 75 x 222
Weight of the instrument in kg: 1.5
