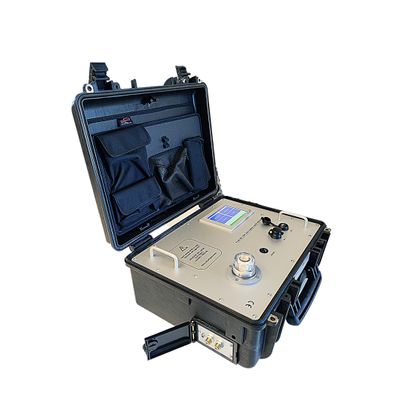

ETG - Model MCA 100 SYN P -Portable multicomponent gas analyzer for Syngas
ETG MCA 100 SYN P series of gas analyzers by ETG are the ideal solution for Syngas measurement applications because of their accuracy, stability, reliability, broad measurement range, and the variety of available form factors. Unlike other analyzers, ETG MCA 100 SYN P non-dispersive infrared (NDIR) gas analyzers measure multiple gases in the instrument in special wavelenght regions, interferences free from the other components.
The TCD detector used for H2 analysis is automatically corrected via proprietary algorithm for possible interferences by other gases. ETG analyzers have the ability to measure CH4, CO2, CO, CnHm, H2 and O2 providing the optimal combination of gases for syngas process optimization. The enhanced optics and electronics of our NDIR analyzers have virtually eliminated zero drift after the initial warm up period. The temperature and pressure compensation eliminates the major causes of span drift in the instruments.
- Syngas Plants
- Hythane Plants
- Research Center
- Syngas System Integrator
Just like our portable Biogas analyser, the ETG MCA 100 SYN analyser requires no remarkable or frequent maintenance. Calibration can be carried out directly by the user, without the analyser being sent to our laboratories. All ETG Resources and Technology instruments can be remote-controlled on any PC globally via an Internet connection. ETG technicians provide comprehensive, fast and global support.
• NDIR (for CO2, CO and CH4) & TCD (for H2) technology
• N2 and Heat value calculate by proprietary algorithm (standard)
• Modbus, Profibus, Ethernet (optional)
• Sample conditioning system (optional)
• Automatic Zero Calibration (optional)
• Portable Version
• Cross sensitivity compensation
• Arm processor
• Touch Screen monitor
• Battery pack
• Ethernet, Wi-Fi and USB
Remoting
• Low cost of ownership
