Zeltex - Model AgriNIR 4.0 -Portable NIR Analyzers

AGRINIR 4.0 is tried and tested portable analyzer for forages and grains that measure the percentage of  moisture (dry matter), crude protein, starch, ADF, NDF and ash in seconds.

• GPS antenna integrated to localise the sample
• App based for an improved UX
• Analyze all components including slurry and digestate
• Automatic rotation of the samples
• EvoNIR 4.0 is DLG certified for pig-cow, mixed slurry and digestate
• Real time outlier identification
• Remote serviciability and calibration update
• Reports available directly on the App. Available to share via WhatsApp, mail etc.
• 4G Modem integrated to exchange data with NIR Trace and NIR Evolution
• More powerful predictive engine based on last maths models
• Totally portable
• Print out reports right after the analysis thanks to the built-in printer
• Connects to NIR Trace software
• NIR Evolution Software: provided as standard with the purchase of each and every portable NIR analyzer enables:
  • initial verification of your NIR device.
  • keeping your analyzer always up-to-date (update of calibrations and firmware).
  • reliable predictions thanks to the constant alignment between your NIR analyzer and test lab

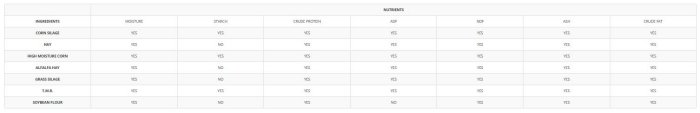

PRELOADED INGREDIENTS

7 Preloaded ingredients by 7 nutrients.

AgriNIR^TMSystem components

• Sample holder
• Check cell
• AC power supply
• Car lighter adapter for field use
• Service contract (Included with the purchase of the machine for the first year) with:
  • Original Spare parts package
  • NIR Trace Cloud software license
  • NIR Evolution Cloud software license
  • 24/7 support service
  • Multi-lingual helpdesk

NIR Trace

NIR^TMTrace is a data management software that allow to record organize and show forages and grains NIR analysis

• Historical Analysis of AgriNIR^TM data;
• Possibility to select parameters and make accurate statistics
• PDF and Excel download of all analysis stored in the software;
• Data transfer from AgriNIR^TM software through USB;
• Possibility to manage many AgriNIR^TM with a single software using different IDs;
• Creation of graphs, possibility to see different graphs in a single screen
• Client data transfer from NIR^TM Trace to AgriNIR^TM and viceversa. Possibility to see client data directly from AgriNIR^TM
• All analysis results are imported in the NIR™ Trace It is possible to integrate this software in the DTM^TM IC in order to recalculate the ration using real values.

• Display dimensions: 7” 16/9
• Display Type: LCD 1/4 VGA
• Accuracy: Moisture: 1,5%* | Starch 2,4% | ADF 2,4% | Ash 2,4% | Crude Protein 2,4% | NDF 2,4% | Crude Fat 2,4 %
• Power supply: 110 - 220 Vac 50-60Hz (external power supply included) 12 - 18 Vdc (lighter plug or vehicle battery clips included)
• Weight: 19 Kg (42 lbs)
• Working Temperature: 0 / +40°C (32 /+104°F)
• Case Dimensions: 500 x 300 x 460 mm
• 20 x 12 x 18 inches
• Case material: ABS

* The degree of accuracy depends upon the availability of prediction models for each product, on-site verification of the instrument, use of the NIR Evolution Cloud Software (DRN 985-0139)
