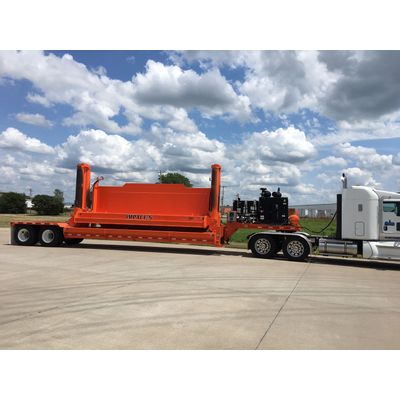

Aljon - Model Impact V -Portable, One-Man Operation Car Crusher
This portable, one-man operation car crusher can crush up to five cars at a time! Its unique design has reduced total set-up time to less than one minute. 49 second cycle time. 57,000 lbs, High strength back wall.
Lighter and Stronger
Quad-Post Guide System
The key to the Impact V Quad-Post Guide System is the equal distribution of the crushing force to the four corners of the crushing lid. The crushing lid is connected to the four sliding guides by heavy-duty pivot lugs mounted on each corner. The stress is distributed equally across the guide posts, sliding guides and pivot lugs, giving the Impact V greater stability and durability.
High Strength Back Wall
The back wall has been designed incorporating high strength steel, which provides you with a solid backboard for positioning vehicles during loading and unloading. High strength steel accounts for over 25% of the Impact V’s 57,700 lbs (26,173 kg).
- Quad-Post Guide System
- High Strength Back Wall
- Lid comes to within 9” of the crushing floor
- Multiple working cycles available
- Standard industrial grade remote control
- Standard hydraulic gear
(Nominal) Dimensions:
- Overall Length: 13.1 m / 43 ft.
- Travel Height: 4 m / 13 ft 5 in.
- Travel Width: 2.5 m / 8 ft 4 in.
- Overall Weight: 26,173 kg / 57,000 lbs.
- Weight (at Kingpin): 11,159 kg/24,600 lbs.
- Weight (at Tandem): 15,014 kg/33,100 lbs.
- Operating Height: 6.1 m / 20 ft 1 in.
- Loading Area: 2.1 m / 7 ft wide
- 6.1 m / 20 ft 1 in length
- 2.3 m / 7 ft 6 in high-lid fully raised
- 2229 mm / 9 in high-lid fully lowered
Tank Capacities:
- Diesel Fuel: 151 liters / 40 gallons
- Hydraulic Fluid: 454 liters / 120 gallons
Power Unit:
- Volvo Tier 4 Engine
- 100 hp electric with VFD Controls
Cycle Time:
- 49 seconds from full extend to full retraction of cylinder
Warranty:
- Full machine coverage for 1 year / 2,000 hours warranty
- Structural coverage for 2 years / 4,000 hrs
- Volvo Tier 4 coverage for 5 years / 10,000 hours
Additional Notes:
Routine machine service and maintenance points are easily accessible and engineered to be serviced safely and quickly.
Many components or spare parts can be sourced locally. Service will be provided by the full resources of Aljon’s parts and service department in the USA.
