TA - Model PPVM Series -Portable or Fixed Personnel or Vehicle Monitor

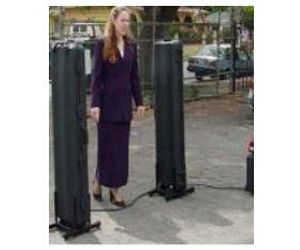

Portable control / alarm module plus two portable weather proof detector housings. PPVM-TA & PPVM-TB each contain two Plastic Scintillators 528 in2 /detectors. PPVM-HM contains two Plastic Scintillators 576 in2 /detectors. Rate of change electronics with audio and visual alarms. Operates on built-in rechargeable batteries or 110/220 AC. PPVM-TA & PPVM-TB are designed for rugged outdoor use as well as indoors. PPVM-HM is designed primarily for indoor use.
Model PPVM-TA is a high sensitivity Beta/Gamma Monitoring system for determining possible radiation contamination on people, in containers, or vehicles on a non-pause basis. Since the operation of this instrument is based on rate of change in radiation, it will reliably pick up contamination as it passes near the monitor.

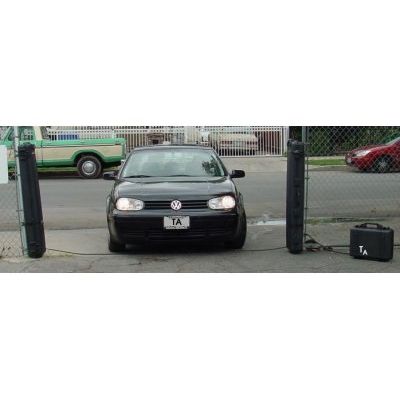

Model PPVM-TB achieves greater sensitivity for people or vehicles by stop & count approach. This system can be set-up at the road side or in a parking lot. It can be mounted to a fence post or stand alone in an indoor or outdoor area. Background is continually updated and subtracted thus giving net reading for person or vehicle.

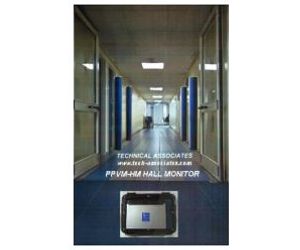

Model Series PPVM are-re-positional monitors. Detectors are fixed on each side of hallway or doorway AT ANY WIDTH and may be remounted in alternate locations.
- Completely portable
- Can be set to any width
- Quick set up
- Optional: wireless remote notification – phone, alarm, etc.
- High sensitivity due to large surface area
- Detects beta & gamma radiation
- Operates on rechargeable batteries or ac
- Can alarm at 7 UR/HR change in 1 second (PPVM-TA & PPVM-HM)
- Sees & can alarm at 1 UR/HR above background (PPVM-TB)
- (2) Plastic Scintillators – one 528 in2 in each case (PPVM-TA & PPVM-TB)
- (2 Plastic Scintillators – one 576 in2 in each case (PPVM-HM)
- Dynamic background subtract
- Continuous operation: “set & forget”
- Completely weather proof
- Data download via USB & Ethernet
- Model Series ~ PPVM PPVM-TA ~ PPVM-TB ~ PPVM-HM
- Detectors (PPVM-TA & PPVM-TB): 2 ea. 12” x 1.5” x 44” premium Plastic Scintillators with a wide temperature range.
- Detectors (PPVM-HM): 2 ea. 8” x 1.5” x 72” premium Plastic Scintillators with a wide temperature range.
- Volume (PPVM-TA & PPVM-TB): 792 in3 per detector.*
- Volume (PPVM-HM): 864 in3 per detector.*
- Surface Area (PPVM-TA & PPVM-TB): 528 in2 per detector.*
- Surface Area (PPVM-HM): 576 in2 per detector.*
- Sensitivity: Detects 1 uCi of Cs-137 anywhere within portal based on 15 second count. Background up to 1 mR/hr. 28” portal width.
- Range: 1 uR/hr to 1 mR/hr.
- Rate of Change Design: Fast Alarming
- Power Requirements: Operates on a built in rechargeable batteries or 110/220 AC. Smart Trickle Charge when Plugged into Wall (AC)
- Power Recharge Cable: 6 ft. cable furnished. Three Prong grounded connector.
- High Level Alarm: Flashing red light and intermittent 2900 Hz tone. (90 dB) Volume adjustable / On/Off switch.
- Alarm Set:
- PPVM-TA: Internal factory set at .007 mR/hr rise per second. May be reset by user.
- PPVM-TB: Internal factory set at 10% above ambient background. May be reset by user.
- PPVM-HM: Internal factory set at .007 mR/hr rise per second. May be reset by user.

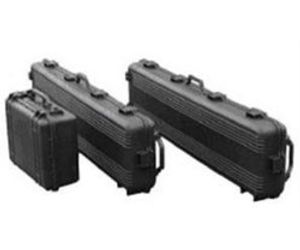

- Portable Cases: Weather-tight NEMA rated tough, durable, lightweight. A “tongue-in-groove” continuous O”-ring system makes the case water, moisture, and dust tight, & a low profile pressure release valve.
- Wall Mount Cases: HMC Tubular Locking System. Constructed of heavy 1.5 mm steel. Fits between 16 inch center wall studs, or on the floor. Full length piano hinge door for easy access, rugged construction prevents accidental damage.
- Dimensions Each: 60.125” H x 4.125” D x 14” W
- Weight Each: 47 lbs
- Self-Test: For: Low Battery, Loss of Signal, and High Back Ground.
- Status Indicators: “Ready” - “Counting” - “Clean-OK” - “High Alarm” “Count Incomplete”.
- Count Time: 1 to 20 seconds (PPVM-TB & PPVM-HM only).
- Background Compensation: Background is continually updated and subtracted. (User can set parameters.)
- Energy Range: Gamma: 40 KeV to 6 MeV. Beta: above 1 MeV, includes P32, Sr90Y90, & N16 Communications: Built-in serial port and Ethernet Node.
- Count Start: Counting starts automatically when person or vehicle enters portal and trips sensor.
- Set-Up: One person can set-up unit in about 2 min.
- Designed to Meet FEMA and NRC Needs for Large Scale Evacuation of Contaminated Area or Screening.
Dimensions & Weight:
- Dimensions (PPVM-TA & PPVM-TB): Control Box: 16” x 20” x 10” plus Alarm Beacon.
- Detector Towers: 54” H x 15.5” W x 7” D.
- Dimensions (PPVM-HM): Control Box: 16” x 20” x 10” plus Alarm Beacon.
- Detector Towers: 78” H x 15.5” W x 7” D.
- Optional: Alternate Packaging.
- Shipping Weight - Portable: 150 lbs. (Lighter Less Sensitive Models Also Available.)
- Shipping Weight – Wall Mount: 200 lbs. (Lighter Less Sensitive Models Also Available.)
- Carrying Weight Portable: Control Box: 18 lbs. Each Tower: 55 lbs. (Wheels & Handles are Built-in - PPVM-TA & PPVM-TB.)
- PPVM-HM has no wheels or handles.
- Mountable and Repositionable.)
- Check Source: RAU-BGX, uranium source; license exempt.
- Additional Relay: 5A SPDT to operate other circuits.
- Additional Remote Alarm: RAL-3W flasher, siren.
*Additional Options:
- 220 V, 50-60 Hz.
- 7-day Battery Back-up.
- Additional detectors.
- Alternate detectors other size plastic scintillators, NaI(Tl) Scintillators, or BGO crystal.
- Specific detectors eg. for Plutonium or Neutron or Beta emitters
- Additional Photo Cell sensors(s) to measure speed of person or vehicle passing through portal.
- Wire-less operation.
