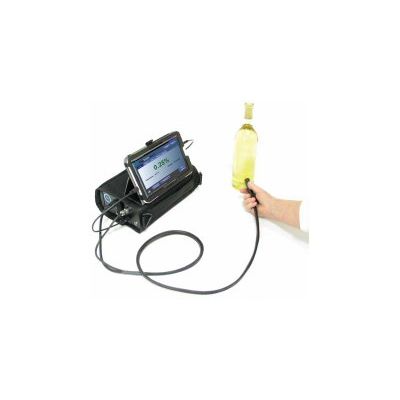

Systech - Model OxySense -Portable Oxygen Analyzer

This portable oxygen (O2) analyser offers non-invasive and invasive measurements in oil, water and air. It can be used out in the field, as well as in the lab. It has the capability of providing multiple measurements over time on the same package offering accurate analysis through real time, real world measurements. Due to the measurement process used, the risk of sample contamination or leaks is eliminated.

• Industry: Food and Pharmaceuticals
• Gas: Oxygen
• O2 Operating Range: 0-30% Gas, 0 to 100% saturation Liquid
• Lower Detection Limit: 0.03% Gas, 15ppb Liquid
• Temperature Range: 0-50 ºC Gas & Liquid
• Accuracy: 5% of the reading Gas & Liquid
• Dimensions: 6.7" x 3.3" x 12.5" (170 x 83 x 317mm)
• Weight: 9 lbs (4 Kg)
• Battery Life: 10 hours
• Complies with: ASTM F2714-08

• Real time graphical display
• Touch screen operation
• Automatic data logging
• Battery powered
• SampleTracker bar code software for
  managing multiple tests and samples
• Integrated report writer with graph and log capability
• Low cost sensors
• No pumps or electrochemical cells to maintain and replace
• No annual maintenance or factory calibration requirements

• Headspace analysis
• Dissolved oxygen analysis
• Shelf life studies
• Closure testing
• Oxygen scavenger evaluation and characterization
• Line start up evaluations
• Leak detection
• Anaerobic environment monitoring
