Paroscientific - Model 765 -Portable Pressure Standards

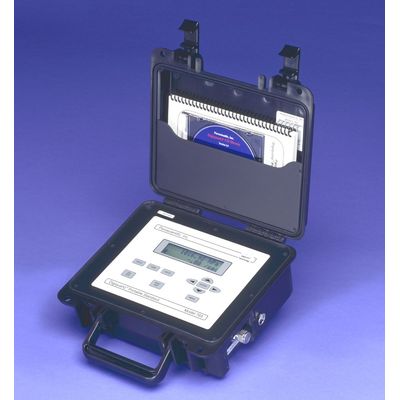

The Model 765 is portable, easy to use, and fully selfcontained in a rugged, compact case. Turn it on and immediately read the pressure values in any of nine user-selectable engineering units. Front panel selections include taring, resolution, sampling time, number of display digits, engineering units, max-min readings, alarm points, and communication parameters. Choices for the second line display include an analog pressure bar graph, sensor temperature, rate of pressure change, stored text or user-defined external text.

An internal logger can automatically store over 390,000 high-resolution data points. The Model 765 can also be controlled via the bi-directional RS-232 or USB interface. The unit is powered by an AC Adapter (included), or by the internal, rechargeable 150 hour battery. Free configuration and logging software is included.

The Model 765 is the best choice for accurate, reliable, and stable pressure measurements.

PERFORMANCE*
0.008% Full Scale Accuracy
Resolution better than one part-per-million

RANGES
20 Absolute Pressure Ranges from:
0-15 psia (0.10 MPa) to 0-40,000 psia (276 MPa)
6 Gauge Pressure Ranges from:
0-15 psig (0.10 MPa) to 0-200 psig (1.38 MPa)

APPLICATION AREAS
Metrology
Aerospace
Meteorology
Oceanography
Process Control
Energy Exploration
Laboratory Instrumentation

FEATURES
Simple, intuitive front panel menu system
Tare, Hold and Programmable Fast Key
Front panel data entry and display
Password-protected menu system
Two-line backlit display– Menu selectable functions
Taring
Engineering units
Pressure bar graph
Sensor temperature
Resolution and sampling speed
Maximum and minimum pressure
Average pressure, rate, trend and scatter functions
Free configuration and logging software
Internal data logging - over 390000 data points
Enhanced remote control and command
User-defined outputs
USB and RS-232 interfaces
High and low pressure alarm points
Internal rechargeable battery or AC power
100-240 VAC universal power adapter
Battery status LED and display indicator
150 hours rechargeable battery operation

QUALITY AND STANDARDS
NIST traceable
Market-leading 5-year limited transducer warranty
