TA - Model TBM-IC-RN -Portable Radon Monitor

• Open Screen Chamber:
• Designed for measuring ambient radon and no air pump is required. A cloth sleeve is provided as an accessory.
• Solid Wall Chamber:
• Designed for a sample to be pulled from a closed space such as a hood, glove box, or other enclosed spaces. A pump is required for the solid wall chamber & is offered as an option.
• It has 2 self-sealing detachable hose barbs providing immediate grab sample and read out, eliminating excess labor, delay, & cost.
• User can collect sample air and measure in place or disconnect the 2 hoses thus sealing the chamber & relocate to a cleaner environment to take the reading form the captured grab sample.

• Compact Digital Readout: 6 Digit Rate 8 Digit Integrate
• Smal_ Jghtweight 26 Oz
• TBVI Pac<Age
• Linear Response
• (2) Non-Pressurized Interchangeable Easy Clean Ion Chambers
• Solid Wall Chamber

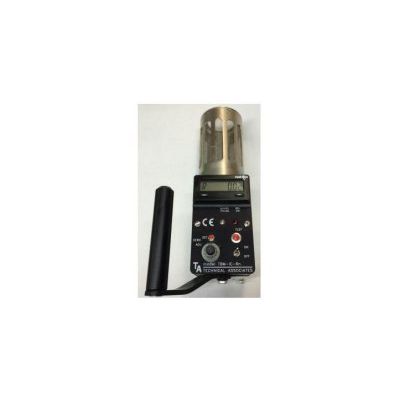

• Open Screen Chamber (Shown)
• Fastresdonse
• Wide Range
• Easy Change Ion Chambers Optional Air Pump For Solid Wall Chamber

• Whenever a fast, sensitive Radon Detector is needed, the TBM-IC-RN detects 10 picoCi/l in 5 seconds & detects public release level in less than 10 minutes.
• The TBM-IC-RN ion chamber is small and lightweight. It uses stable, essentially drift-free electrometer technology.

• Detector: (2) Non-pressurized interchangeable ion chambers 3” dia x 5`` long. Internal volume 600 cc.
• Open Screen Chamber
• Solid Wall Chamber with two self-sealing detachable hose barbs
• Chamber Walls: Both chambers have Nickel plated aluminum.
• Open screen chamber has stainless steel mesh & provided cloth sleeve.
• Readout: LCD: 6 Digit Rate; 8 Digit Integrate.
• Indicator Lamp: Green LED for High Level. Red LED for Over-Range.
• Range:
• Rate 6 digit 10 picoCi/liter to 1 µCi/liter in a single range.
• Integrate 8 digits 1 picoCi/liter* to 100,000 pCi/liter in a single range.
• *less than 1 minute Indication FOR VERY HIGH LEVELS.

NOTE: TBM-IC-RN in Integrate Mode has no timer. User must provide clock or stopwatch

• Air Flow: Open Screen Chamber Passive Diffusion
• Optional: Solid Wall Chamber
• Electrometer: Solid State MOSFET input.
• Electronics: Analog to Digital converter LCD drivers.
• Batteries:
• 15 ea. (Button) NEDA CR-1220 - shelf life 7 years.
• 6 ea. (AA) – 1000 hr. Read Out
• Dimensions & Weight:
• Dimensions: 11" x 4" x 8" including handle and optional pump.
• Weight: 26 oz. complete with batteries.
• Optional: Closed Wall Chamber: Air Pump - 1 lb
• Options: Readout in Si units: KBq/m3 User Specified at time of order
• Pump: Closed Chamber - Lightweight Battery Powered Pump
• Air Flow: Flow Rate: 4 CFH..
