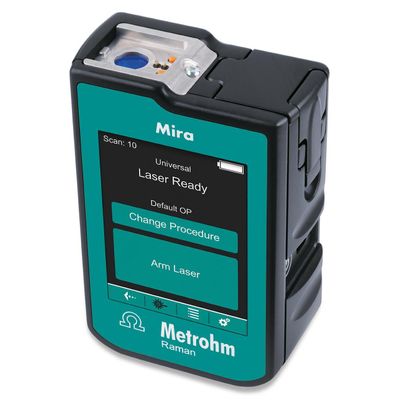

Metrohm - Model Mira DS Basic - 2.926.0010 -Portable Raman Spectrometer
The Metrohm Instant Raman Analyzer (MIRA) DS is a ruggedized, high-performance, portable Raman spectrometer for rapid, nondestructive determination of illegal materials, e.g. drugs, explosives, base materials, and hazardous substances. Despite the small size of the instrument, the MIRA DS is highly ruggedized and features a high-efficiency spectrograph equipped with our unique Orbital-Raster-Scan (ORS) technology.
MIRA DS Basic package allows the user to customize the MIRA DS to meet their needs. The MIRA Basic package is a starter package that contains the basic components required for operating the MIRA DS.
The MIRA DS basic package includes the library for illegal materials, a calibration standard, a USB cable, and the LWD attachment for analyses in bottles and several bags. Laser Class 3B operation.
- Protection class: MILSPEC 810G, IP67 Certified
- Connectivity: USB / Bluetooth
- Laser Wavelength (nm): 785.0
- Laser output power (mW): < 100
- Spectral Range (cm?¹): 400-2300
- Resolution (cm?¹) (FWHM): 8-10
- Touchscreen Display: 3.7" Resistive
- Barcode Scanner: false
- Weight (grams): 705.0
- Battery life (h): > 4h (with recommended batteries)
- Dimensions in mm (W/H/D): 88.2 × 126.5 × 45.3
