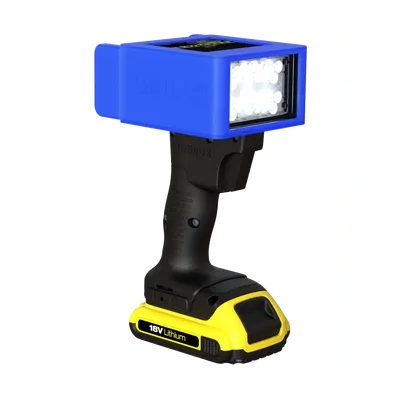

Unilux - Model LED3 -Portable Strobe Light for Narrow Space Inspection
The LED3 is an advanced portable strobe light designed for detailed inspection in narrow and confined spaces. Doubling the brightness of previous models, this lightweight and compact device is ideal for narrow web inspection, ensuring print quality, registration alignment, and slit accuracy. Its multifunctional capability allows it to be used as a flood or spot light and can be mounted for fixed applications or used as a handheld unit. The LED3 is engineered for longevity with low power consumption and virtually maintenance-free operation, making it a reliable tool for various applications such as maintenance troubleshooting, coating spot checks, and high-speed machinery monitoring. The LED3 features an intensity of 2660 LUX (Flood) and 4990 LUX (Spot) at 300mm distance, with adjustable flash rate and duration to sync with machine line speeds, providing uniform illumination pivotal for precise defect spotting. The unit supports up to 8 hours of continuous use and recharges fully in 4 hours, incorporating long-life LEDs for consistent performance.
LIGHTER, BRIGHTER WITH ULTIMATE FLEXIBILITY AND AFFORDABILITY
For inspection in narrow spaces, the LED3 is twice as bright as prior models. A compact, lightweight design makes the LED 3 ideal for narrow web inspection to ensure print, registration and slit quality. It is also a perfect tool to spot check coatings and to troubleshoot running machinery when performing maintenance functions.
INTENSITY
- Flood: 2660 LUX at 300 mm (12 in) from the object
- Spot: 4990 LUX at 300 mm (12 in) from the object
- Very bright, uniform illumination
VERSATILITY
- Handheld or fixed mount options
- Flood, spot and UV models
- Adjustable flash rate & duration that syncs with your line or machine
- Constant-on for work light
- Lightweight –only 1.1 kg (2.4 lbs)
- Up to 8 hours of continuous use
- Recharges completely in 4 hours
QUALITY
- Long-life LEDs make the LED3 virtually maintenance free
- High-quality construction; extremely durable
- Lower power consumption
APPLICATIONS
- Narrow web printing: inspection of print quality and registration, speed measurement, machine vision, confirmation of form alignment, inspection of security print elements using UV-visible inks
- Narrow web converting: trimmed edge and perforation analysis, surface inspection of standard and UV-visible adhesives and coatings, confirmation of label content and placement in packaging, inspection of cold seal quality
- Maintenance: detection of slippage in belts & webs, high speed motion timing, motor speed measurement, troubleshooting of shafts, gears and pulleys
- Textile mills
- Tin mills
The Handheld LED3 Flood [03-1281-DC-F] and the LED3 Spot [03-1281-DC-S] units include:
- (1) Lighthead (Flood or Spot)
- (1) Battery Handle
- (1) DC Power Pack
- (1) Charger
- (1) User Manual
