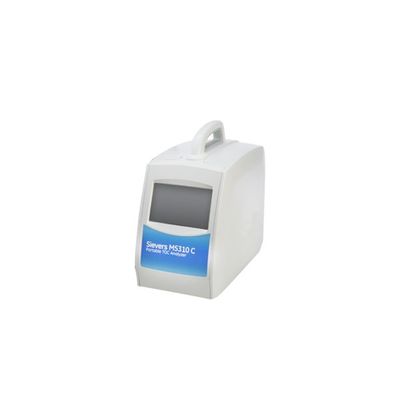

Sievers - Model M5310 C -Portable TOC Analyzer
Portable, lightweight analyzer designed to meet regulations and optimize processes. The Sievers M5310 C Portable Total Organic Carbon (TOC) Analyzer is the most versatile of the M5310 C series. Its light weight and compact design makes it a powerful troubleshooting analysis tool that can be used for single grab samples, in autosampler mode, or in a process stream for continuous on-line TOC measurement. Offering an operating range of 4 ppb to 50 ppm, this analyzer is engineered to support regulatory compliance and processes optimization goals.
Most popular related searches
portable total organic carbon analyzer
portable TOC analyzer
TOC analyzer
total organic carbon analyzer
online TOC
portable total organic carbon
total organic carbon
grab sampling
portable analyzer
water source
Sievers M5310 C Portable features two operating modes - continuous or grab sample. Equipped with the Integrated On-Line Sampling System (IOS System™), the M5310 C Portable allows the easy introduction of external standards and samples without removing the instrument from the continuous sample source.
- Provides readings in only two minutes
- Simple and intuitive
- Automated calibration, verification, and data analysis enable unattended operation
- Automatically calculates percent TOC removal for influent and effluent streams or samples
- The Autoreagent feature automatically establishes optimal flow rates for each sample
- Pre-calibrated for simple installation
- Minimal maintenance — typically just a few hours per year
- Self-contained with small footprint and internal reagent packs — no external chemicals, catalysts, or gas supplies required.
- Easy data communications — export or collect data via USB, 4-20 mA, or Modbus TCP/IP outputs
- IOS system allows testing of external samples and standards without removing the analyzer from the continuous water source
- The grab-mode, alphanumeric labeling feature allows individual labeling of each grab sample for easy recall later on
Operating Specifications*
- Range 4 ppb to 50 ppm
- Precision < 1% RSD
- Accuracy ± 2% or ± 0.5 ppb, whichever is greater
- Display Readout 3 significant digits
- Sample Type On-line continuous, Autosampler, or discrete grab sample, timed on-line, TOC removal on-line, TOC removal grab
- Calibration Typically stable for 12 months
- Analysis Time 2 minutes
- Sample Temperature** 5–95 °C (41–203 °F)
- Ambient Temperature 5–40 °C (41–104 °F)
- Sample Pressure 100 psig
- Required Sample Line Flow Rate >50 mL/min (for on-line mode)
- Instrument Sample Flow Rate 0.5 mL/min
Analyzer Specifications
- On-Line Inlet(s) One stream
- Outputs 4-20 mA output (3); alarm outputs (4); binary input (1); USB device port (1); USB host ports (2); Ethernet
- Display 7" WVGA, Color LCD with touch-screen
- Power 100 – 240 V~, 50 - 60 Hz, 100 VA
- Fuses Replace with same type and size fuse: T 1.6 A 250 VAC Fuse (Slow Blow), size 5 X 20 mm appliance inlet
- Dimensions H: 39.5 cm (15.4 in); W: 22.9 cm (9.0 in); D: 46.4 cm (18.3 in)
- Weight 9.8 kg (21.6 lb)
- Safety Certifications ETL, CE see Declaration of Conformity
- Enclosure Rating IP-21
Environment
- Maximum Relative Humidity 0 - 95%, non-condensing
- Maximum Altitude 3,000 m (9.800 ft)
- Pollution Degree 2

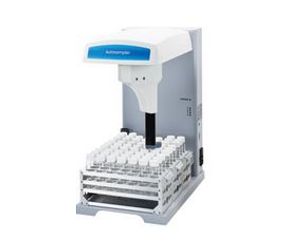

- Sievers Autosampler: enables 24+ hours of unattended sample analysis (63 or 120 sample position capacity)
- DataPro2 Software: integrates the Autosampler with the M5310 C Lab, providing timesaving features to maximize productivity and ensure easy TOC data management.
- Autosampler rinse station: flushes the sample inlet system and needle with a flowing water source, maximizing analytical performance of samples of varying concentrations.
- Pre-filter kits: provide sample conditioning to ensure optimal instrument performance. Three application-specific kits are available: normal use, heavy use, and treated drinking water
