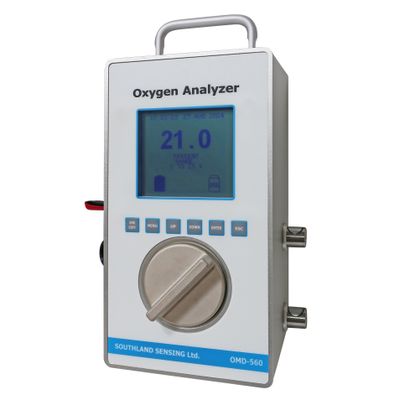

Southland Sensing - Model OMD-560 -Portable Trace Oxygen Analyzer, CE

• Enclosure: Anodized Aluminum; Portable
• Ranges: 0 – 10/100/1000/10000 PPM & 0 – 25%
• Sample System: None; Quick Disconnect Fittings
• Resolution: 0.01 PPM
• Input Power: 100 – 240 VAC w/ International Plug
• Analog Output: 0 – 1V DC
• Data Logging: Removeable USB Flash Drive

The built in smart MENU interface allow the user to fully configure the analyzer through the onboard MENU system.  No need for a complicated laptop or other control device to setup the analyzer in the field.  Another highlight of the advanced set of electronics includes a USB output for data logging.  Data logging can be done via a removable USB flash drive and data can be taken in 1 minute intervals.  An 8 GB flash drive can store data for 50+ years.

The OMD-560 trace analyzer comes with a built-in isolation quick disconnect fittings.

The standard cell (TO2-133) is unaffected by other background gases such as hydrogen, helium, or hydrocarbons. The optional acidic cell (TO2-233) works well when acid gases such as CO2 or Natural Gas are present.  All oxygen sensors are manufactured in house by Southland Sensing Ltd. under a strict ISO9001:2015 / ISO13485:2016 quality system.

The sensors are self-contained and minimal maintenance is required – no need to clean electrodes or add electrolyte.

Designed to measure trace oxygen in a rugged anodized aluminum enclosure.  The unit combines quick disconnect fittings, advanced electronics features including a smart MENU interface, integral USB removeable flash drive for data logging along with our industry leading precision electrochemical oxygen sensor technology. The result is an inexpensive, high accurate and easy to use portable analyzer with an international 100 – 240VAC wall charger.

Specific applications typically include spot checking natural gas extraction, coal bed methane, welding, reflow soldering, glass manufacturing and other industrial processes.
