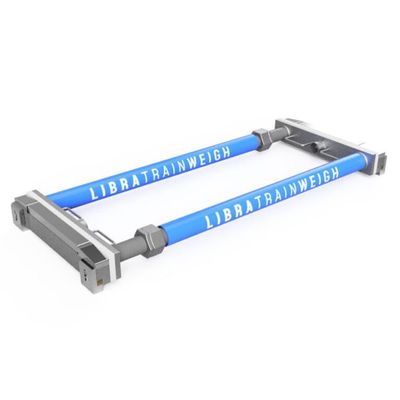

Libra - Model TW1-AX -Portable Train Weighing System

This portable train weighing scale is a digital load cell-based system which fits to the inner sides of rail. When the wheel flange rolls up the ramp, the wheel’s tyre is slightly raised raised, so the wheel-rail contact force is tested on the wheel flange. This means that faults related to the running surface are ruled out from the outset, such as faulty grip due to conical wheels and effects caused by the linear expansion of the rail. This is beneficial for trains that undergo pre and post modifications at locomotive workshops and train maintenance depots. All parts including the load cells are accessible from ground level for easy access for maintenance.

Static and Dynamic Weighing

The TW1-AX mobile train weighers can be daisy chained together to weigh whole train wagons or a single TW1 unit can be used to weigh single axles or full trains in a low speed weigh in motion configuration.  The portable nature of the TW1`s design allows for a weigh station to be set up temporarily anywhere on a train network quickly with no infrastructure changes needed.

• No Track Downtime
• No Costly Civil Works
• Pre-Calibrated, Ready to Operate
• Portable, Quick & Easy Installation
• Precision Digital load Cells

• Capacity : 15t/wheel, 30t/axle
• Weighing Divisions: 2kg
• Accuracy: 0.1% F·S for static weighing; 1~3% for dynamic weighing
• Protection Class:IP67
• Supply Voltage : 12V DC,230V/50Hz AC
• Interfaces: USB, LAN, WLAN
