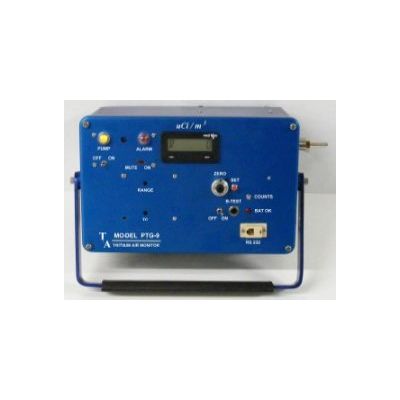

TA - Model PTG-9 -Portable Tritium Air Monitor

SHARE

Technical Associates PTG-9 is a Tritium Air monitor; a highly sensitive, rugged, and portable instrument. A subtractive balanced chamber electrometer circuit decreases background effects to negligible levels and its deionized and filtered intake reduces spurious effects from smoke dust and existing ionization in the air. It is line operated with nominal 20 hour battery back-up. Optional inlet and outlet hoses allow monitoring interiors of fume hoods, exhaust stacks, etc. The PTG-9 will measure airborne Tritium as free hydrogen or as volatile chemicals in concentrations as low as 1 x 10-3 uCi/l of air. (37KBq/m3). All instruments are calibrated at the factory. Calibration check may be performed in the field with a microCurie level Beta or Gamma source. Background chamber may be disconnected to check linearity of response on a gamma calibration range. User friendly calibration controls are provided.

Most popular related searches
tritium air monitoring
air monitoring
portable tritium air monitoring
tritium monitor
tritium monitoring
gamma calibration
exhaust stack
water mixing
fume hood
air monitoring system
  • High sensitivity tritium air monitor
  • User settable units - UCI/L or Bq/m3 etc.
  • Wide range - digital accuracy
  • Programmable digital readout
  • Sensitive for occupational exposure
  • Dynamic background compensation
  • Battery operation or ac operation
  • Built-in high level alarm
  • Built-in low flow alarm
  • Built-in rs-232 computer interface
  • Portable

Tritium is radioactive hydrogen and hydrogen atoms regularly jump or exchange between different adjacent oil and water molecules.
In a mixture of normal water mixed with tritiated oil, both components will, over time, share the Tritium equally.

In GASEOUS Samples, the same principals apply.

  1. A vapor separation system is recommended.
  2. Use a PTG-9 Tritium Ion Chamber to make the measurements.
  • Ranges:
    • Compact, easy to read digital LCD readout.
    • 1 x 10-3 to 10 uCi/l (37 KBq/m3 to 3.7 x 108Bq/m3)
  • Background: Essentially eliminated by subtractive balanced chambers.
  • Smoke, Dust & Ion Elimination: Filter and deionizer reduce effects to negligible level.
  • Circuit: Electrometer circuit amplifies net difference between 0.7 liter Tritium internal chamber and a sealed background chamber of similar configuration.
  • Alarms: Low Air Flow, Alarm High Level Alarm: Red Lamp and Audio Alarm.
  • Controls: Power, Pump On/Off, Battery Check, Set (calibration aid),
  • Zero Adjust, Meter Programming (Two buttons).
  • Calibration: Can calibrate internally with Tritium gas, or on a calibration course, or (at a single point) with optional Beta or Gamma source.
  • Computer Port: RS-232 serial port is built in (fully addressable).
  • Portability: PTG-9 is provided with carrying handle.
  • Case: Deep drawn aluminum case, with handle and gasket lid, easily cleanable anodized finish.
  • Battery: 9V rechargeable sealed. Battery Life: 20 hours between charges. Battery charger is built-in.

Weight & Dimensions:

  • Dimensions:
    • Instrument Case (Including handle): 9.25``W x 13.5``L x 10`` Tall.
    • Front Panel: 9`` Long x13`` Wide.
  • Weight: 18 lbs.
  • Shipping Weight: 24 lbs (excluding pre-filter)
  • Options:
    • Higher Range: Different Readout Units
