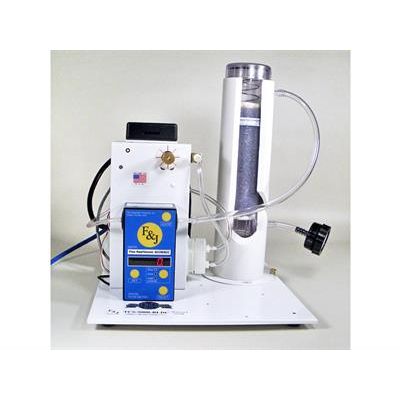

F&J - Model TCS-5000E-BLDC -Portable Tritium Collection System
Model TCS-5000E-BLDC is a portable tritium collection system consisting of a brushless DC motor powered diaphragm pump, a digital flowmeter with automatic flow control and a removable polycarbonate indicating Silica Gel column. The flow and volume of air passing through the system is measured by a microprocessor controlled Digital Flow meter (DFM). The DFM utilizes a precision-machined orifice to measure flow rate. The DFM displays on-board calculations on a bright large character LED display screen. Data download capability is available through the RS232 port on a real-time basis utilizing an optional F&J data storage device.
The unit is designed for continuous indoor use and weather protected outdoor use. Please consult the product specifications for the design temperature range and the installation category.
The typical operating flow range is 100-300 cc/min (0.10 - 0.3 LPM). Other custom flow ranges are available upon request. Additional fees may apply for custom ranges.
- Microprocessor controlled electronics
- Brushless Motor
- Automatic flow control
- Flow rate measurements and volume totalizations are corrected to a factory settable reference Temperature and Pressure. Options for Reference T and P are:
- Classical STP: 0ºC, 1 Atm
- Normal T and P: 20ºC, 1 Atm
- Modified Normal T and P: 70ºF, 1 Atm
- Standard Ambient T and P: 25ºC, 1 Atm
- RS-232 Port
- LED Display
- Precision machined orifice
- Flow rate accuracy within ± 4% F.S.
- Flow rate / Volume Options:
- sccm / scc
- SLPM / SL
- 220-240VAC; 50/60Hz, single phase
