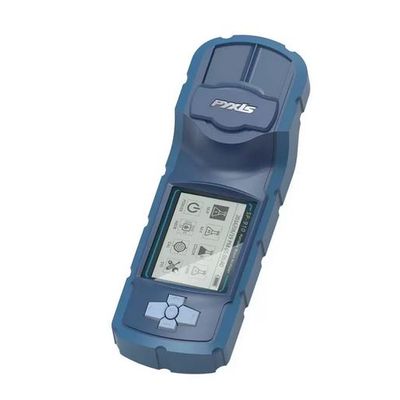

Pyxis - Model SP-910 -Portable Water Analyzer

• PTSA and Fluorescein – Measure PTSA and Fluorescein in the same meter for your traced programs in cooling and boiler applications.
• Calibrate ST-500 Directly – Calibrate a nearby ST-500 via built-in bluetooth after measuring sample concentration. No laptop or any other tool needed.
• LIVE Graphical Value Display Reduces/Eliminates Wait Time for Plateau Results
• Wireless Data Transfer to Cloud Data Management Capable
• User Defined Programs – User defined programs supported with non-linear calibration curves. 60+ programs including reagent-less nitrite and chlorine dioxide measurement.
• Battery Life Doubled – Six months or more under typical usage even equipped with higher resolution LCD readable in direct sunlight.
• Product Name / Direct Read (ppm) Programmable
• More Upgrades – Turbidity range extended to 0-100 and 0-1000 NTU with auto ranging. 16mm tube adaptor available for programs require digestion.

New Test Capability

• PAA (10-500 ppm)
• Direct Read Bleach Concentration (0-16%)
• Direct Read ClO2 (7.3-50ppm)
• MonoChlorAmine (0.1- 3.0 ppm)
• Non-hazardous Zinc

All-In-One Convenience

The SP-910 features an intuitive graphical design with a minimal amount of keys. With the SP-910 designed as an all-in-one product, water treaters can reduce the number of devices needed for testing. The SP-910 works as:

• Range: 0-300 PPB PTSA; 0-600 ppb Fluorescein
• Colorimeter Wavelength: 420, 455, 525, 560, 570, and 610nm
• Turbidity Excitation Wavelength: White and IR LED
• Fluorescence Excitation Wavelength: 365 / 470 nm LED
• Fluorescence Emission Wavelength: 410 / 525 nm
• Wavelength Accuracy: ±1 nm
• Absorbance Reproducibility: 0.005 au in the range of 0 to 1.0 au (3 sigma)
• Absorbance linearity range: 0 to 1.0 au
• Turbidity Reproducibility: 2 NTU (3 sigma)
• Fluorescence Detection Limit: 1 ppb PTSA / 0.1 ppb Fluorescein
• Turbidity Detection Limit: 1 NTU
• Display: LCD display, visible under direct sunlight
• Temperature Range: 40 to 106 ℉ (4 to 41 ℃)
• Environmental: IP67, dustproof and waterproof
