Schleuniger - Model Series B300 -Portable Wire Stripping Machine

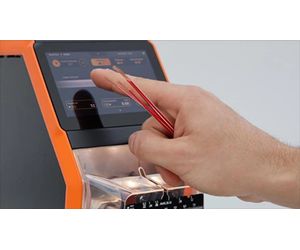

The portable B300 stripping machine reliably strips cables with cross sections from 0.03 to 8 mm² (32 to 8 AWG) and up to 7 mm (0.27") outer diameter. The portable and programmable Strip Series B300 is easy to operate, even without programming knowledge. Its ergonomic design and intuitive 5” color touchscreen interface make usage simple and efficient. High repeat accuracy, precise mechanics, and short work cycles ensure productivity for standard stripping applications.The B300 initiates the strip as soon as the cable end touches its sensitive trigger sensor. Continuous axis monitoring eliminates the need for referencing, improving quality and saving time.Predefined process parameters enable immediate use for standard functions like full and partial pull-off and recutting. An optional software upgrade is available for more complex applications.
Simple Conductor Processing in Only 35 Clicks

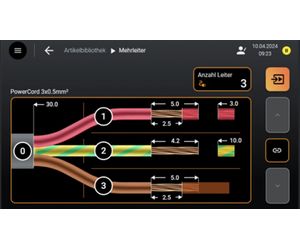

Programming multiconductor cables is fast and easy with the B300. It takes about 35 clicks to program a multicore cable—compared to approximately 130 clicks on the UniStrip 2300.

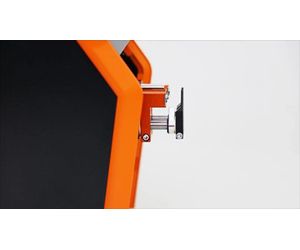

The narrow 1.8 mm clamping jaws and various surface options (cross-hatch and diamond) enable the processing of a wide range of cables. Cable-specific jaws are available on request.
All relevant information is displayed in a large format and clearly distinguished by color. The most frequently used functions are visualized for easy guidance.
Strip Series B300
- Metric
- Options: Foot pedal, Automation Interface, Software Upgrade
- Wire outer diameter min.: 0.25 mm
- Wire outer diameter max.: 7 mm
- Insertion depth with optional thin grippers min.: 6 mm
- Number of entries in the article library: virtually unlimited
- Strip length min.: 0.1 mm
- Strip length max.: 50 mm
- Increment of strip length: 0.1 mm
- Pull-off length min.: 0.1 mm
- Pull-off length max.: 30 mm
- Max. conductor diameter for cutting: 1.8 mm
- Break-out length min.: 11 mm
- Insulation material: PUR, rubber, Teflon, Tefzel, Kapton, etc.
- Blade: 2 blades linear, horizontal
- Incision diameter increment: 0.01 mm
- Wire cross section min.: 0.03 mm²
- Wire cross section max.: 8 mm²
- Gripping force: programmable
- Piece output max.: 2800 pcs/h
- Noise level: <57 dB
- Electrical connection: 100 V AC to 240 V AC, 50/60 Hz
- Compressed-air connection: 4-6 bar
- Compressed-air quality: Dry, filtered (10 μm), oil-free
- Weight: 11 kg
- Dimensions/length: 418 mm
- Dimensions/width: 132 mm
- Dimensions/height: 317 mm
- Temperature operation: 10 - 40 °C
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Cycle time: 0.35 sec
- Cycle time depending on: depending on cross-section, strip length and pull-off length
- Data interface: USB, Ethernet, Automation Interface (Option)
- User interface: 5" color touch panel
- Trigger: Automatic trigger sensor, touchscreen, foot panel
- CE conformity: The B300 fully complies with the CE and EMC machinery directives relating to mechanical andelectrical safety and electromagnetic compatibility.
Imperial
- Options: Foot pedal, Automation Interface, Software Upgrade
- Wire outer diameter min.: 0.001 in
- Wire outer diameter max.: 0.28 in
- Insertion depth with optional thin grippers min.: 0.236 in
- Number of entries in the article library: virtually unlimited
- Strip length min.: 0.004 in
- Strip length max.: 1.97 in
- Increment of strip length: 0.004 in
- Pull-off length min.: 0.004 in
- Pull-off length max.: 1.18 in
- Max. conductor diameter for cutting: 0.7 in
- Break-out length min.: 0.433 in
- Insulation material: PUR, rubber, Teflon, Tefzel, Kapton, etc.
- Blade: 2 blades linear, horizontal
- Incision diameter increment: 0.0004 in
- Wire cross section min.: AWG32
- Wire cross section max.: AWG8
- Gripping force: programmable
- Piece output max.: 2800 pcs/h
- Noise level: <57 dB
- Electrical connection: 100 V AC to 240 V AC, 50/60 Hz
- Compressed-air connection: 60 - 90 psi
- Compressed-air quality: Dry, filtered (10 μm), oil-free
- Weight: 24.25 lb
- Dimensions/length: 16.46 in
- Dimensions/width: 5.2 in
- Dimensions/height: 12.48 in
- Temperature operation: 50 - 104 °F
- Processing outside the specifications: Processing outside the specifications upon request. In case of doubt, we will be happy to provide processing samples for your wires.
- Cycle time: 0.35 sec
- Cycle time depending on: depending on cross-section, strip length and pull-off length
- Data interface: USB, Ethernet, Automation Interface (Option)
- User interface: 5" color touch panel
- Trigger: Automatic trigger sensor, touchscreen, foot panel
- CE conformity: The B300 fully complies with the CE and EMC machinery directives relating to mechanical andelectrical safety and electromagnetic compatibility.
