Metalfab - Model PB -Posibin

The Posibin consists of a static cylindrical bin fitted with the unique Metalfab Bin Activator. This vibrating motorized unit, attached to the bottom of the static bin by vibration isolator-equipped solid steel suspension arms and flexible reinforced sleeve, provides continuous movement of the product in the bin. A conical primary baffle, mounted within the bin activator moves horizontally with the vibrating Bin Activator, keeping the contents in continuous motion and eliminating potential flow-stoppages such as bridging, rat holing, etc.

A secondary conical baffle, located at the final outlet, moves at a slightly different amplitude, to prevent jamming and compaction in that critical area.

Two Posibin models, with capacities from 3 to 750 cu. ft., handle materials with bulk densities to 200 lbs/cu. ft. The largest units are ruggedly mounted to the static bin by solid, carbon steel hangers capable of supporting more than 500,000 lbs. The Posibins may also be hung from overhead steel. Operation is almost completely noiseless.

Features/Benefits

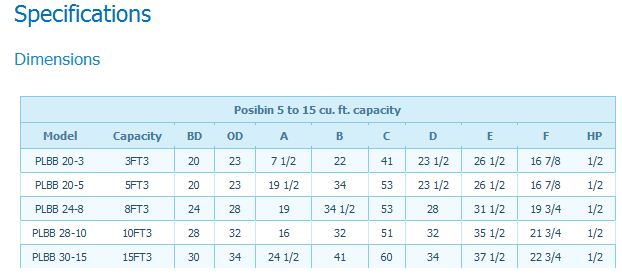

• Diameters: Two Models, 20" to 30"; 3` to 8`
• Capacity: 3 to 15 cu. ft., 25 to 750 cu. ft.
• Bulk Density: To 299 lbs./cu. ft.

Operating Characteristics

• Provide positive, problem-free discharge of a wide range of difficult to handle materials in a variety of densities and particle sizes

Construction

• Carbon Steel, 304 or 316 stainless steel, special coatings

Features/Benefits

• Includes LVT Bin Activator using threaded rod isolators as hanger arms, to reduce vibration.

Available Options

• Other Metalfab upstream/downstream feeders, Convey-All Conveyors, bulk bag unloaders and hoppers
