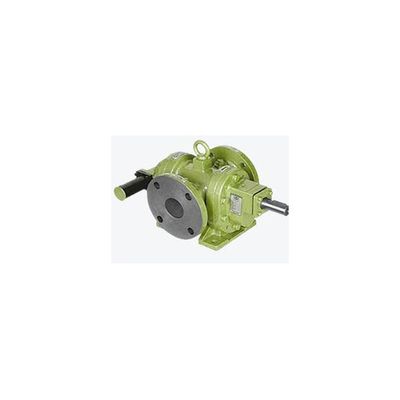

Care-Well - Model CWRN -Positive Displacement Gear Pump
CARE-WELL ENGINEERS offer “CARE-WELL PUMPS” brand gear pump Model “CWRN” (External Gear Pump - Positive Displacement Pump - Rotary Twin Gear Pump) Which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model “CWRN” having three-piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which is help to increase life and performance of pump.
Part: Material For CWRN
Pump Body: CI/CS
Front Cover: CI/CS
Back Cover: CI/CS
Gland Cover: CI/CS
Rotor & Stator Shaft: EN-19
Gear: EN-24/EN-353
Bush/Needle Bearing: INA/IKO [Japan]
Wear Plate: Non-Ferrous
Lifting Hook: Mild Steel
R.V. Housing: Mild Steel
R.V. Piston: EN-8
R.V. Spring: Spring Steel
R.V. AD. Screw: EN-8
Sealing: `GFO` Teflone/Mechnical Seal
Key: EN-8
Dowel Pin: EN-31
Hex - Bolt: Mild Steel
- Power Plants.
- Steel Plants.
- Bitumen Plant.
- Refineries & Pumping station.
- All kind of Liquid Loading & Unloading.
- All knid of Oils.
- Petroleum Industires.
- Cement Plant.
- Double Helical Gear Design Prevents Axial Load.
- Shorter Bearing Span Reduces Bending Effect.
- Optionally Steam Jacket Available.
- Heavy Duty Gear Pump Design for Continuous Application.
- Floating gear design ensures uniform load distribution.
- Low leakage path by design improve volumetric efficiency.
- Capacity: UP TO 125 M3/HR.
- Size: 1/2" X 1/2" TO 6" X 6”.
- Speed: UP TO 1400 RPM.
- Pressure: Up TO 10 KG/CM2.
- M.O.C.: CI/CS
