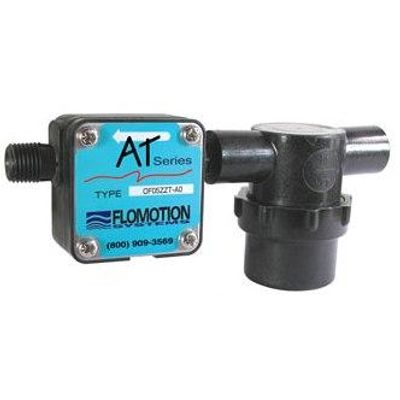

Flomotion Systems - Model AT Series -Positive Displacement Oval Gear Flow Meter
The AT Series Flow Meter is ideal for measurement of harsh chemicals and liquids. AT Series Positive Displacement Flowmeters can accurately measure flow rates down to 63 ml/min. Corrosion resistant materials make these sensors ideal for a wide variety of chemical flow monitoring applications.
Most popular related searches
positive displacement flow meters
flow meter
chemical flow monitoring
flow monitoring
low flow monitoring
positive displacement meter
chemical monitoring
strainer
- Simple design only two moving parts
- Low flow capability
- Measures pulsating flows
- Economical cost
- Non-metallic body & gears
- High resolution pulse output
- Low pressure drop
- Compact size
- Horizontal or vertical mounting
- Materials of Construction:
- Body: PPS
- Gears: PPS
- Shafts: SiC
- O-Rings: Viton
- Flow Ranges:
- OF05ZZT-AO: 1 to 15 GPH
- OF10ZZT-AO: 6.0 to 90 GPH
- Accuracy: ± 1.0% of reading
- Repeatability: 0.1%
- Viscosity Range: 1-1000 CPS
- Max. Temperature: 160°F
- Max. Pressure: 150 PSI @ 70 °F
- K-Factor
- OF05ZZT-AO: 0.46 ml / pulse
- OF10ZZT-AO: 2.5 ml / pulse
- Pulse Output: Square Wave
- Recommended Strainer: 200 Mesh
- Cable Length: 18 in.

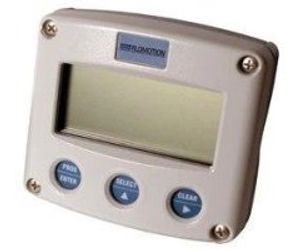

Indicator, Totalizer Specifications
- Display: 2-line LCD• Keypad: 3-Button for Programming and Data Display Selection
- Input: Reed Switch or Hall Effect
- Output: Configurable Open Collector
- Temperature Range: 0-140 Degrees F
- Memory: Non-Volatile
- Sensor Power Supply: 24VDC @ 50mA
- Power Input: 80-240 VAC
- Enclosure: NEMA 4X Wall Mount
- Options:
- 4-20mA Output Proportional to Flow
- (2) Programmable Alarm Relays
