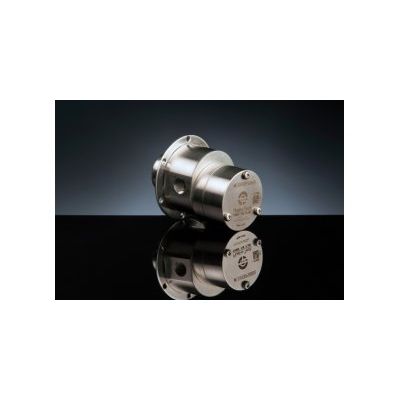

Fluid-o-Tech - Model PO 500-1000 Series -Positive Displacement Rotary Vane Pumps

The PO 500-1000 series positive displacement rotary vane pumps are available with brass or stainless steel housing with ½” GAS or NPT ports and internal relief valve. The nominal flow rates range between 500 and 1000 l/h at 1450 rpm. Any pumps of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 320 GPH. Maximum discharge pressure is 230 psi (16 bar). This series mounts directly to widely available NEMA 48Y motor by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
