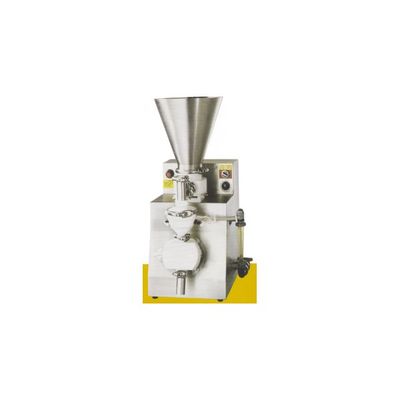

ARDE Barinco - Model D-1000 -Powder Into Liquid Dispersher

Solid Feed Controls: 1-3/8" diameter constant pitch solid flight auger. 1/10 HP TENV DC motor with speed reducer, 3 to 90 rpm auger speed. Air operated vibrator on hopper.

Powder Chute/Liquid Distributor: Acetal homopolymer (DELRIN)

Control: 4 position switch, "Off", "Auger only", "Disperser only", and "On". 1 phase, 60 Hz, 115 Vac.

Impulser Motor: 1/2 HP, 1750 RPM TEFC wash down duty, 1/60/115 Vac. Unit equipped with limit switch to prevent operation when dispersion chamber is open.

Shaft seal: Teflon lipseal

Fluid Section: 1/2" female NPT inlet; PVC ball valve. Polysulfone Rotometer; Polypropylene tubing and connectors; 0.5 to 2.5 gpm.; 1-1/2" sanitary clamp style outlet.

Containing Structure: Type 304 S/S, #4 finish, with rear door and elastomer feet.

Size: 22" L x 18" x 31-3/4" H
Weight: 90 lbs.

Dimensoned per dwg. E0115
PRICE EA: $18,742.00

Terms: Net 30 days
FOB: Carlstadt, New Jersey Quote valid for 30 days.
Shipment: 4-6 weeks following receipt of order.
If expedited shipment is required, please consult factory.
Shortened delivery can often be arranged.
