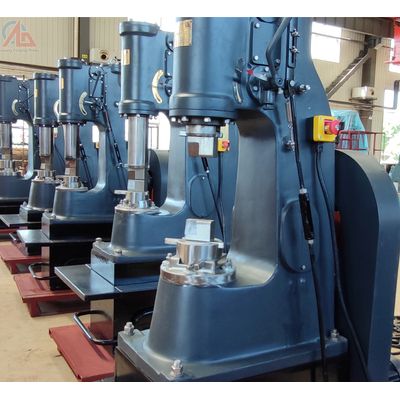

Anyang - Model FP -Power Hammer for Blacksmith

The frames are cast iron, like the old Nazel, Beche, and Massey hammers. Cast iron is more expensive to manufacture compared to fabricated hammers but they are heavier, do not flex over time, and have a lifetime warranty on the frame.

Anyang FP Blacksmith power hammers hold their value well and come with a full warranty. Due to their long lifespan and high build quality, used Anyang power hammers are difficult to find. Sales of used Anyang models are usually close to those of new retail models.

• Anyang Power Forging Hammer does not need an outside air compressor. It will compress air inside with a motor-driven flywheel.
• The cast Iron Frame will never flex or warp. Compare the weights of different hammers available and you will find that the Anyang Power Hammer is amongst the heaviest.  Cast iron is much more expensive to manufacture but allows the designer to put the mass and strength where it is required.
• Lifetime frame warranty, one year on wearing parts against defects, one year on electrical components against defects.
• External drive belts. The design keeps the belts dry and away from oil. This eliminates belt slippage and extends belt life. Replacing the belts is quick and easy.
• The air ports are cast into the hammer. This eliminates internal rubber hoses and fittings.
• Low maintenance.  Anyang power hammer Automatic and fully adjustable oil system. The two grease zerks are easy to reach. Large tapered roller bearings in the crankcase for a long trouble-free life.
• Simplistic design. Only 3 basic sections (crankcase, compressor piston, ram).  Hammers can be disassembled, and if needed rebuilt in a day or less.
• Simplistic design. Only 3 basic sections (crank case, compressor piston, ram).  Hammers can be disassembled, and if needed rebuilt in a day or less.
• Very controllable, making the use of tooling easy.   The operator can change tooling or material thicknesses without adjusting the ram or stroke.
• Easy to install- once the hammer is uncrated installation takes about 30-45 minutes.
• Anyang Blacksmith power hammer (C41-15,C41-25,C41-40,C41-55,C41-75,C41-110 ) one piece which makes for easy installation.
• Anyang power hammer good for making work handling tools for forging operation forged hunting knives, scissors, general operational tools, farm implements and iron art parts for house gate & fence.
• All Anyang power hammers have got CE. The design is safe.

The Anyang FP power hammer is designed to give you many decades of maintenance-free forging. But there are several maintenance items that are important:

1. There are two grease zerks for the crankcase and connecting rod. These grease points should be greased at least once a month. Pump enough grease where you see grease coming out from the bearings or where the shaft exits the crankcase.
2. Using the proper type of oil is important to hammer life and performance. I recommend using 10 to 30 weight (depending on the temperature of your shop). If your oil is not flowing adequately then use a lighter oil. Even in Texas, I use 10 wt. oil most months. It is also important to use non-detergent oil. Oil is consumable (it is not recycled) and operating temperatures are low (compared to car engines) so it is not important to purchase expensive oil. I buy the lowest-cost oil that I can find from the local agriculture supply store. I also purchase it in 2.5-gallon bottles.
3. The most critical component of power hammer performance and life is the amount of oil you use. Oil is not only a lubricant, it is a "sealer". On all of the new hammers, we have eliminated the front oiler to the ram. The rear compressor piston is always circulating when the hammer is running and it always needs an oil supply. The front ram will be fed oil from the rear compressor through the air valves. I recommend that when you first start the hammer, turn the oil valve all the way up and get the oil flowing. When you start forging, you can then adjust the oil down. I recommend trying to dial the oiler to one drip every 3 to 6 seconds. With proper oiling, the ram will be `moist" with a film of oil. I also say "if you make a mistake, use too much oil... it never hurt the hammer." Too little oil long-term will shorten the life of the hammer... just like a car engine.
4. Once a year, check the plastic oil lines for stiffness, discoloration, or cracking. Replace them if necessary. The plastic lines can be purchased for a dollar or two at a local building supply store.
5. After a few hours of forging, tap on the die keys to make sure they are tight.
6. Once every two months, check bolts for tightness. After the first 6 months of usage, check the connecting rod nuts for tightness.
7. Depending on your usage, every two or three months drain the oil at the bottom of the power hammer using the petcock on the side of the power hammer.
