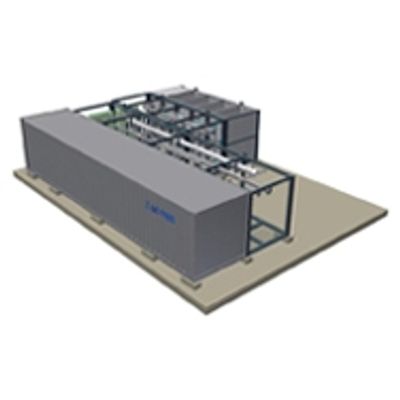

IDE Progreen - Model SW-H-S -Pre-Treatment, Reverse Osmosis Plant
FromIDE Technologies
Capacity: 500m3/day – 1,000m3/day. Consists of 2 standard 20′ containers and 2 standard 40′ containers. Footprint [m]: L – 5.98/11.98, W – 9.20, H – 2.51/2.62.
Most popular related searches
reverse osmosis plant
caustic soda
hypochlorite dosing
sodium hypochlorite
reverse osmosis
dosing system
sodium hypochlorite storage
reverse osmosis treatment
disinfection system
produced water
Second Pass
The second pass uses a membrane based technology to increase the quality of the water produced and to remove the boron. The system uses NaOH only to increase the pH, and a slight dosing of antiscalant. The second pass includes 2 stages to increase the recovery rate of the system.
Post Treatment
- pH correction – Caustic soda dosing and storage system
- Disinfection – Sodium hypochlorite dosing and storage system
Options
- Remineralization – Limestone reactors
- Package – Skid mounted, Containerized
- High Availability – Redundancy configuration (multiple systems), Backup PLC
