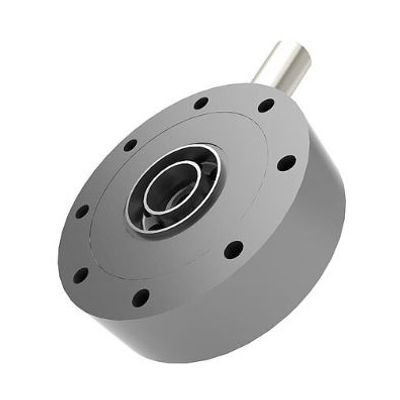

GTM - Model K Series -Precise, Robust and Configurable Force Transducers from 200 N to 630 kN
The K series force transducers use the jump ring principle as the only integrative measuring method in force measurement. These force sensors set standards for accuracy, reliability and quality. This particularly affects the very low sensitivity to parasitic influences (lateral forces, bending moments, torsional moments, temperature fluctuations). They can withstand forces up to 300% of the nominal force without breaking and up to 150% of the nominal force without zero shift. With a fixed cable connection, the K series force transducers achieve IP protection class IP68.
The K series is a force sensor that enables high-precision measurements across the entire measuring range - from the smallest load to the nominal force. This means that the same force transducer can be used for the largest possible measuring range and offers a reliable and economical solution for your force measurement - ideal for materials and component testing, for static and dynamic testing machines or demanding production applications for process control and quality assurance.
- Tensile and compressive forces, static and dynamic
- Nominal force range: 200 N to 630 kN
- Accuracy class: 0.02 to 0.05
- Fatigue strength: >100 million load cycles
- Mounting: flange or thread
- IP protection class: up to IP68
- Flexibly configurable transducer variants
- Precise and reliable measurement results
- Well suited for dynamic application
- Investment security thanks to a long service life
- Very robust & durable
- Mechanical design depending on the nominal load as a flange, thread or flange & thread variant
- Mechanical protection with fixed connection socket
- Nominal characteristic 2 mV/V, 1 mV/V
- Second axial measuring circuit for redundancy
- Bending moment measuring circuits Mx, My for checking the introduction of axial force
- Fixed connection socket or fixed cable in different lengths on the transducer
- If there is a fixed cable on the transducer: different connector types (e.g. D-Sub, MS, M12) or free ends
- Extended temperature range: -40°C to +180°C
- General Data
- Nominal force range : 0.2 to 630 [kN]
- Linearity deviation : 0.02 - 0.03 [%]
- Hysteresis : 0.02 - 0.08 [%]
- TK C characteristic value : 0.04 [%/10K]
- TK o zero signal : 0.025 [%/10K]
- Design :
- (1) Flange
- (2) Central thread
- (3) Flange & central thread *depending on nominal force
- Electrical data
- Nominal characteristic value : 2 or 1 [mV/V]; depending on the nominal force
- Bridge resistance : 900-1200 [ohms]; depending on the nominal force
- Zero signal tolerance : 0.5 [%]
- Nominal range of supply voltage : 5-20[V]
- Mechanical data
- Permanent vibration resistant : 1. Amplitude ≤ 80% Fnom @[2 mV/V]
- 2. Amplitude ≤ 100% Fnom @[1 mV/V]
- Maximum overload : 150[%]
- Static breaking force : 300 [%]
- Fatigue strength / cycles : Fatigue resistance >10 8
- Sensor body material : 1. 0.2kN - 0.5kN: high strength aluminum alloy
- 2. 1kN - 630kN: aging steel
- Hermetically sealed : Yes
- Electrical connection : 1. Fixed connection socket on the housing
- 2. Cable with open ends or selectable and prefabricated plugs
- Environmental conditions
- Nominal temperature range : +10 - +60 [°C]
- Extended operating temperature range : -40 - +180 [°C]
- Protection class : IP68, with a fixed cable connection
- IP50, with a plug connection
