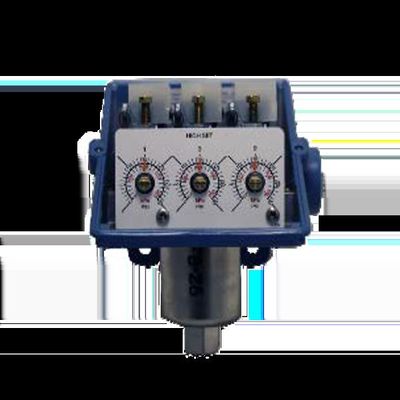

UE - Model 400 Series -Pressure and Temperature Switch
The 400 Series is simple to install and operate, providing end-users multi-output alarm, safety and emergency shutdown functionality. It carries global agency certification. As an electromechanical switch, it can safely operate independently of the control system and switch reliably when called upon, free from potential communication errors or cyber concerns. Typical applications that utilize the 400 Series include regulating industrial gas production, and controlling assets like pumps, turbines, and compressors.
Most popular related searches
pressure and temperature switch
intrinsic safety
temperature switch
industrial gas
pressure sensor
safety compliance
turbine pump
gas controller
pressure switch
gas control
- Low and/or high limit alarm and safety shutdown via one, two or three independent switches, separated up to 100% of range
- Quick and easy installation with ample access to wiring compartment and simple set point adjustment using reference dial or calibrated gauge
- Application versatility achieved through a variety of ranges, microswitches, sensors and process connections
- Replaces a switch and a gauge in differential pressure applications when using optional visual indication
- UL listed and cUL certified. FM approved.
- CE compliant to low voltage directive and pressure equipment directive.
- Optional ATEX or GOST intrinsic safety compliance.
- One, two or three switch outputs may be separated up to 100% of range.
- Wide variety of available options and pressure sensor modules.
- Most models available for immediate delivery
