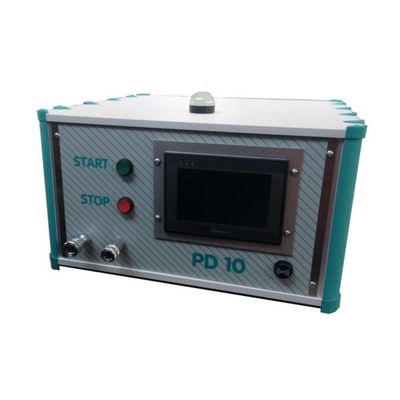

VTech - Model PD Series -Pressure Decay Leak Test Instrument
The VTech PD Pressure Decay Leak Test System is a low-cost, bench-top instrument for detecting gross leaks in sealed refrigeration circuits and components. A Pressure Decay Leak test is highly recommended prior to tracer gas fine leak testing in order to avoid contamination of the test area. In specific applications, where a low leak rate resolution is sufficient, a PD test may be all is required.
The unit is completely automatic. The cycle is selected via the touch screen or optional barcode scanner and started by a convenient foot pedal. An optional two-color stack light indicates the system status.
Additional configurations include the GF10 for tracer gas filling, PD10-HE for PD test with tracer gas filling, and PD10HR for higher leak test resolution.
- Leak test Resolution (Pressure Decay): As low as 10-4 mbar l/s with HR model
- Number of parts/test 1 or 2
- Maximum working pressure: 10 bar
- User Interface 5" LCD Touch Screen
- Unit Presets: 10
- Control: PLC
- Component Evacuation: Optional
- Leak Location? No
- Barcode Scanning: Scan model and serial number
- Data-Management: Record process data (pdf export file)
- Stack Light 2 Color Audio Alarm
- Internet Support Ready: Remote Assistance
- Installation & Training: Guided Project Start-up & Process Education
- Technical Assistance: Free Lifetime Telephone & Email Support
