Ensavior Technologies Pvt. Ltd.

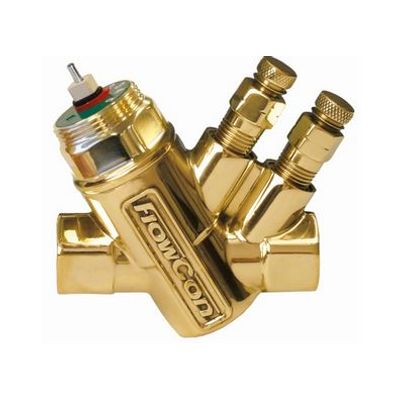

FlowCon Green - Model DN15-40 -Pressure Independent Control Valves
Features & Benefits: Pressure independent control valves (PICV). Total authority. Choice of actuator, electrical actuators: 0(2)-10V modulating, 3-point floating or 2-position, or thermal actuators: 0-10V modulating or ON/OFF.
Most popular related searches
pressure control valve
control valve
balancing valve
electric actuator
automatic balancing valve
flow limiter
- Adjustable to 41 different maximum flow rate limits.
- Forged brass housing, optional bodies available (A, AB or ABV).
- Optional pressure/temperature plugs (AB or ABV).
- Range of union end connections available (ABV) or fixed female-by-female threaded (A or AB).
- Sizes: i – Green.0/1: 20mm (¾”), applicable for DN15/20/25 (½”-1″) valves.
- ii – Green.2: 40mm (1½”), applicable for DN25/32/40 (1″-1½”) valves.
- dP-range: 16-400 kPaD (2.3-58 psid).
- Flow rate: 0.0103-1.29 l/sec (0.163-20.4 GPM).
