Singer Valve - Model 106/206-PR -Pressure Reducing Valve

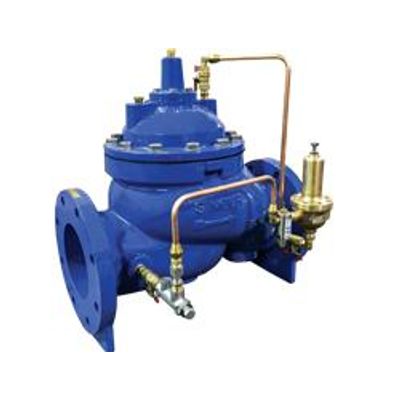

The 106-PR and 206-PR series pressure reducing valves are based on the 106-PG or 206-PG main valves. The pilot valves sense the downstream pressure through a connection at the valve outlet. Under flowing conditions, the pilot reacts to small changes in pressure to control the valve position by modulating the pressure above the diaphragm. The downstream pressure is maintained virtually steady at the pilot set-point. In typical pressure reducing applications, the reduced port model 206-PR is often the best selection.
- Ideal for maintaining accurate downstream pressure
- Responds quickly and effectively

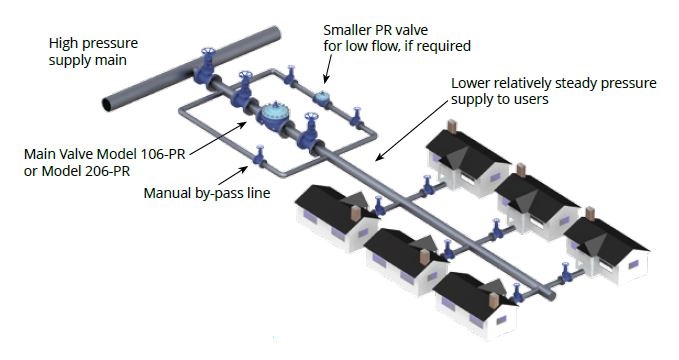

Note: The smaller PR valve by-passing the main valve helps control low flows and provides service during maintenance. It should be set 3 – 5 psi / 0.2 – 0.35 bar higher than the larger valve.
Singer Valve single rolling diaphragm technology 6 in / 150 mm and larger have extremely precise control, even at low flows, making smaller by-pass valves unnecessary except for possible bypass during maintenance.

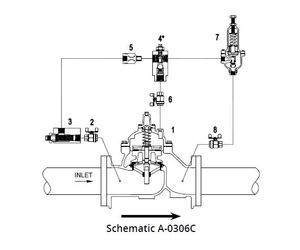

1. Main Valve - 106-PG or 206-PG
2. Isolation Valve - standard 4 in / 100 mm
and larger
3. Strainer - standard 4 in / 100 mm and larger
4*. Model 26 Flow Stabilizer / Opening Speed Control
• Standard on valves 8 in / 200 mm 106, 10” / 250 mm 206 and smaller
5. Fixed Restriction
6. Isolation Valve - standard 4 in / 100 mm
and larger
7. Model 160 pilot
• Specify for 5 to 50 psi / 0.35 to 3.5 bar,
10 to 80 psi / 0.70 to 5.5 bar,
20 to 200 psi / 1.38 to 13.8 bar,
100 to 300 psi / 6.9 to 20.7 bar.
8. Isolation Valve - standard all sizes
Note: SRD shown is available for 6” 106-PG and larger.
Standard materials for pilot system components are:
- ASTM B62 bronze or ASTM B16 brass
- AISI 303 / 316 stainless steel trim
- Buna-N / EPDM diaphragm and seals
