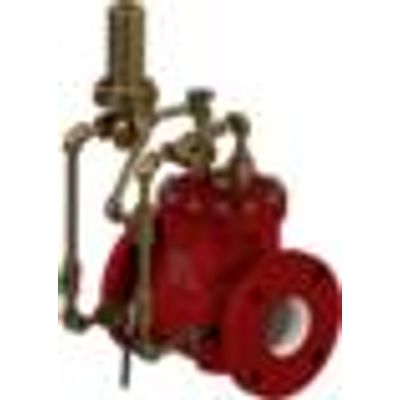

Ross - Model 23-WR -Pressure Reducing Valve
The pressure reducing valve shall be globe (inline) body with flanged or female NPT end connections, be fully mounted, external pilot operated, with free floating piston (operated without springs, diaphragm or levers). It shall contain a single full-ported seat, with seat bore equal to size of valve. The minimum travel of the piston shall be equal to 25% of the diameter of the seat. The piston shall be cushioned and so designed as to insure positive closure. The main valve shall be packed with leather (or other soft material) to insure tight closure and prevent metal-to-metal friction and seating. The valve shall be furnished with pet-cocks for attachment to valve body for receiving gauges for testing purposes. The design shall be such that repairs and dismantling internally of main valve may be made without its removal from the line.
The pilot valve, controlling operation of the main valve, shall have a range of adjustment, be easily accessible: and arranged to allow for easy removal from the main valve while the main valve is under pressure. The pilot valve, speed control valve, external strainer with blow-off, isolation valves, and all associated rigid brass piping and fittings (with the exception of a separate static pressure sensing line, if required) shall be factory assembled and furnished with the valve.
The pilot operated pressure reducing valve shall automatically throttle to reduce a high incoming pressure to a lower, constant discharge pressure regardless of variations in upstream pressure or flow rate.
