Mankenberg - Model DM 755 -Pressure Reducing Valves
FromMankenberg GmbH
The pressure reducer DM 755 is a diaphragm-controlled spring-loaded proportional control valve for very small outlet pressures and medium volumes. The valve body and medium-wetted internal parts are made of stainless steel 316Ti and 316L featuring excellent corrosion resistance. The valve cone is soft-seated. Millibar control valve for small to medium flow rates.
Most popular related searches
pressure reducing valve
pressure reducer
control valve
pressure gauge
pressure control valve
load control valve
corrosion resistant valves
pressure reducing control valve
soft seated valve
flammability hazard
Standard
- Housing and media-exposed internal parts made of 316Ti and 316L stainless steel
- DIN or ANSI flanges, threaded sockets G or NPT
- Non-rising adjusting screw
- Quick-release body clamp ring
Options
- Pressure gauge connection
- Clean gas version with special connections
- For toxic or hazardous media: sealed bonnet complete with leakage line connection (incl. sealed adjusting screw). Must be installed with a leakage line capable of draining leaking medium safely and without pressure
- Different materials for diaphragm and seals, suitable for your medium
- Special connections: Aseptic or JIS flanges, welding spigots; other connections on request
- Special versions on request
- DN: 15 - 50
- G: 1/2 - 2
- PN: 16
- p1: up to 16 bar
- p2: 0.001 - 0.7 bar
- Kvs: 0.25 - 4.8 m³/h
- T: -35 up to 130 °C

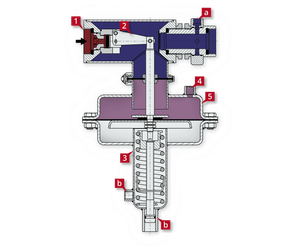

- EASY-ADAPT – Connection adapter
- Large control surface: Exact control and tight valve closure also at low pressures
- Excellent standard surface quality: Easy to clean
- Sense line connection: High control accuracy
- Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, lightweight and compact: Short delivery times, long operational lifespan, minimum space required
Options
a. Pressure gauge connection
b. Leakage line connection and sealed adjusting screw: Suitable for flammable and hazardous media
