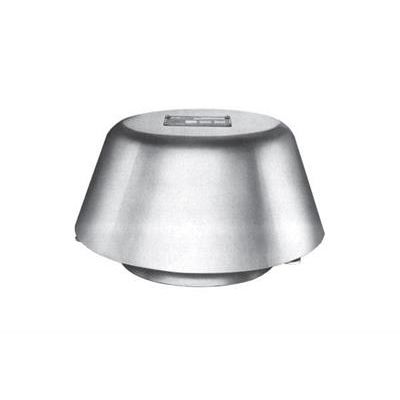

Shand & JursModel 94126 -Pressure Relief Vent

SHARE

The Shand & Jurs Model 94126 Pressure Vent is designed to relieve pressure on low pressure storage tanks, and is ideally suited as a low cost rim vent on floating roof tanks. Also, it is suitable as an auxiliary pressure or emergency vent on small low pressure tanks. The Model 94126 is available in a 6-inch size only, with screwed connection.

Most popular related searches
  • Economical
  • Ideally Suited for Rim Vent
  • Easy Installation
  • Available in 6" Size
  • Standard Setting:
    • 1/2 oz./sq.2
  • Connection:
    • 6” NPT

Materials of Construction

  • Body:
    • Cast Aluminum
  • Cover:
    • Cast Aluminum
  • Weather Hood:
    • Aluminum
  • Screen:
    • Galvanized Steel, 316 Stainless Steel
