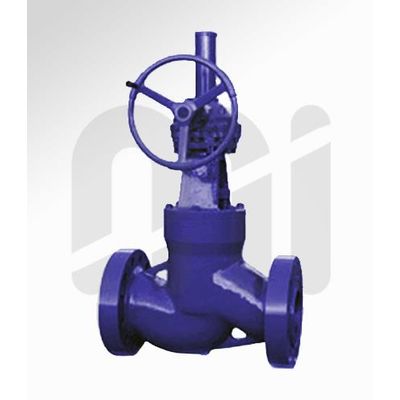

Motipur - Pressure Seal Globe Valve
A pressure seal globe valve is a type of valve used to control the flow of fluids or gases in high-pressure and high-temperature applications. The valve is designed to withstand extreme pressure and temperature conditions and is commonly used in the oil and gas, power generation, and chemical processing industries.
The pressure seal globe valve has a globe-shaped body and a movable plug-like disc or piston that moves up and down to control the flow of fluid or gas through the valve. When the valve is closed, the disc or piston presses tightly against the valve seat to create a seal that prevents any leakage, even at high pressures and temperatures.
The valve is typically made of materials such as carbon steel, alloy steel, or stainless steel, which are capable of withstanding the harsh operating conditions. It is also designed with a bolted bonnet that provides additional strength and durability.
- DESIGN STANDARD: ASME B 16.34
- TESTING STANDARD: ASME B 16.34
- OPERATING PRESSURE: Up To 439 bar (6250 PSI)
- OPERATING TEMPERATURE: Up To +593º C / 1100º F
- PRESSURE TEMPERATURE RATING: ASME B 16.34
- FACE TO FACE: ASME B 16.10 Short Pattern For Butt-weld End
- ASME B 16.10 LONG Pattern for Flanged End
- FLANGED END: ASME B 16.5
- BUTT WELD END: ASME B 16.25
- MATERIAL: WCB, LCB, WC6, WC9, C5, C12, CF8M & Others
- OPERATION: Manual, Gear, Electrical Actuator
