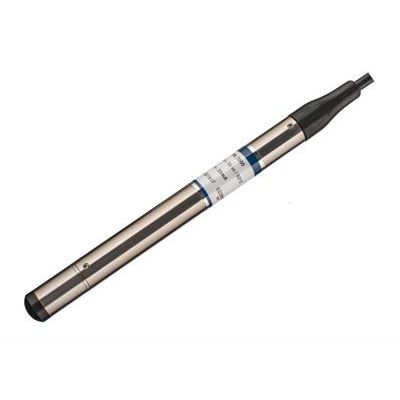

Aquamonix - Model PS7000 -Pressure Sensor (Level Sensor)
The PS7000 Level Sensor has a standard, 2-wire, loop powered, 4-20mA output with an option for 0-2.5Vdc suitable for a wide range of data loggers, process controllers and other third-party devices. A robust, 22mm, 316 stainless steel body, ceramic capacitance transducer and double O ring sealing ensure suitability for a range of environmental applications.
The sensor comes fitted with a moulded polyurethane cable and can be supplied in various gauge (vented) or absolute (non vented) pressure ranges. Gauge sensors utilize a closed vent system (CVS) – this provides barometric pressure venting of the sensor, without the need to continually replace desiccant. An optional SDI-12 adapter can provide a level and temperature output for external controllers or data loggers.
- Measurement Technique: ½” ceramic capacitance transducer
- Ranges Available
- Gauge: 2.5, 5, 10, 20, 40, 75, 100m
- Absolute: 20, 40, 75, 100m
- Sensor Output: 4-20mA, 0-2.5V, RS232 (via Serial Breakout Adapter: 085-0080), SDI-12 (via SDI-12 Converter: 7SDI-1000)
- Closed Vent System (CVS): Gauge sensors must be fitted with a CVS
- Power Supply: 8-30V DC (loop powered)
- Dimensions: 278mm x 22mm (11” x 0.86”)
- Robust 316 stainless steel body material for harsh environments
- Slim line design is ideal for groundwater applications
- No need for regular desiccant replacement resulting in fewer field visits
- Low cost of ownership and minimal maintenance
- Easy to Use
- Long term reliability
