BW-TEC - Model 2766 1UP -Pressure Tester

FromBW-TEC - Brand of Machine Solutions Inc.

SHARE

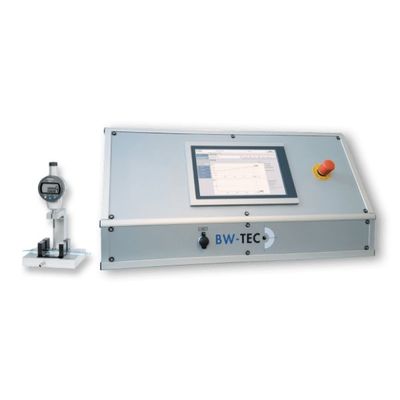

The 2766 1UP Pressure Tester with leak detection is a Hydraulic Burst Tester designed for customers in the field of development and production of angioplasty catheters. The control system gives the opportunity to choose different pressure cycles for products with specific requirements, and store these as a dataset.

Most popular related searches

pressure tester

water distillation

water distiller

hydraulic testing

pressure leak detection

The machine delivers pressurized distilled water and can perform the following tests:

Burst Test: Pressure is built up continuously to the burst pressure
Compliance Test: Pressure is built up in steps with up to 10 measurement points for each step.
Multiple Inflation Test: A building up of the same pressure occurs repeatedly.

test pressure: 0 – 48 bar (0 – 670 psi)
pressure medium: water (<100 µS/cm)
tolerance: +/– 0.1 bar (1.45 psi)
Mitutoyo measuring gauge: 0.001mm
product diameter max: 25.400mm
filling volume max: 50.0ml
filling speed: 0.1–10.0 ml/s
w/leak detection
connection: luer lock (male)
bottle for distilled water
simple user interface with BW-TEC HMI on touchscreen
document test result: XPS or PDF
PLC controller and tablet-PC for HMI and data management, network compatible
dimensions (L x W x H): 700 x 300 x 300 mm
weight: 25 kg
power: 115/230 VAC, 400 W
