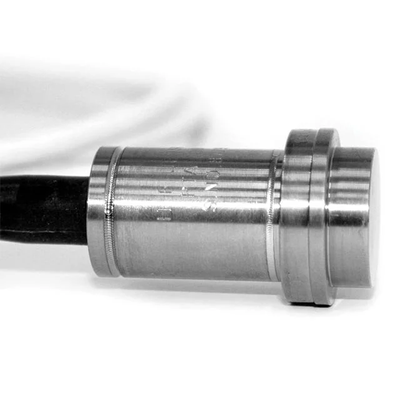

HF Jensen - Model PTA -Pressure Transducer Sensor

The sensing element of the pressure transducer is a diaphragm machined out of titanium grade 5. On the inside of the diaphragm is mounted a strain-gauge, which converts the pressure generated deformation to a change in resistance. Titanium grade 5 is characterized by excellent corrosion data, very high 0.1% proof stress (85 kp/mm2), very little hysteresis and excellent long-term stability. Available with teflon cable or LEMO connection. The connector version allows the sensor to be autoclave cleaned provided the connector is protected by a cover.
