OPTIBAR - Model P 1010 -Pressure Transmitter for Basic Pressure and Level Applications

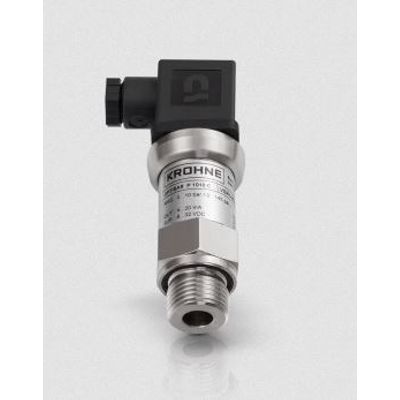

The OPTIBAR P 1010 is an ultra-compact pressure transmitter for absolute and gauge pressure measurement of gases and liquids. The pressure transmitter is a very cost-effective device for simple process pressure applications (e.g. monitoring of pumps, compressors or other machinery) as well as hydrostatic level measurement in open vessels where space-saving installation is required.
Pressure transmitter for basic pressure and level applications
- Ultra-compact design with recessed stainless steel diaphragm
- Up to 600 bar / 8700 psi
- Thread: ¼, ½ NPT (male); G¼, G½ (male)
- 2-wire 4…20 mA
The transmitter features an optional fully welded pressure measuring cell with corrosion resistant stainless steel diaphragm for pressure ranges from 0.1…600 bar / 4…8700 psi. The modular design of the OPTIBAR P 1010 allows combining a variety of process connections, pressure ranges and electrical connection variants. The pressure transmitter can be used in hazardous areas.
- Space saving design for installation in limited spaces
- Extraordinary accuracy of ±0.25%
- Outstanding temperature stability
- Long-term stability: ±0.1% within 1 year
- Modular design: free combination of device options such as electrical connections, diaphragm material, fill oil, measuring range, process connections
- Ingress protection up to IP68 / NEMA 6P
- ATEX/IECEx intrinsically safe approval for Zone 0
General
- Absolute and gauge pressure measurement in gases and liquids
Basic applications in various industries:
- Plant construction and engineering
- Environmental technology
- Power generation
- Factory automation
- Hydraulic and pneumatic systems
- Pumps and compressors
Depending on selected device configuration
General information
- Product type Pressure transmitter
- Product family name OPTIBAR
- Product positioning For basic pressure and level applications
- Measured media Gases, Liquids
Approvals/Standards
- Certificates/Approvals Others Pressure Equipment Directive (PED)
- Certificates/Approvals Ex ATEX, IECEx
Communication
- Analogue outputs 0…10 VDC, 4…20 mA
Materials
- Diaphragm Austenitic stainless steel (1.4435/316L)
- Fill fluid Silicone oil
- Measuring cell seal Ethylene propylene diene monomer (EPDM), Perfluoroelastomer rubber (FFKM), Fluoroelastomer rubber (FKM), Without (fully welded)
Operating conditions
- Process temperature -40…+125°C/ -40…+257°F
Process connections
Thread connections Male:
- G¼, G½, (EN 837-1) G¼, G½ (DIN 3852)
- G½ (DIN 3852, 10 mm bore) ¼ NPT, ½ NPT
