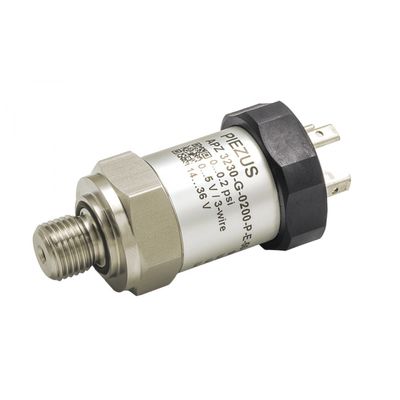

PIEZUS - Model APZ 3230 -Pressure transmitter for very low pressures and vacuum
FromPIEZUS LLC
APZ 3240 is based on a silicon piezoresistive sensor without media isolation diaphragm and therefore is capable of measuring very low pressures and vacuum. Compatible with non-aggressive and non-corrosive gases and low viscosity oils, APZ3420 has a great long term stability and reduced temperature error comparing to the traditional models with diaphragms. Dry sensor makes this model preferable in applications where media contamination with filling oil is not desirable.Most popular related searches
Pressure ranges: 6 mbar up to 1 bar
Accuracy: up to ±0.25%
Outputs: 4...20 mA (option – Ex ia); 0...20 mA; 0...10 V; 0...5 V; HART; RS-485/Modbus RTU
Sensor: silicon piezoresistive, no media isolation
Pressure port: G1/2”; G1/4”; 1/2” NPT; 1/4” NPT; М20х1.5 etc.
Media temperatures: -40…+125 °C
Ambient temperatures: -40…+85 °C
Optional field housing with/without graphics display
Medical equipment
Laboratory instruments
Clean rooms
HVAC
Vacuum applications
